Flatline PRO Solid Grey Garage Gym Flooring Set – 55m² of 20mm Tiles
| Depth: | 20cm |
|---|---|
| Length: | 1m |
| Width: | 1m |
Description
Flatline PRO Solid Grey Garage Gym Flooring Set – 55m² of 20mm Tiles
Heavy-duty, low-odour, precision-engineered rubber flooring set, designed for high-performance garage gyms, PT studios, and strength training zones.
This 55-tile set covers a full 55 square metres, making it ideal for large triple garages, outbuildings, or professional training spaces. Whether you’re outfitting a gym for clients or building your own high-spec training zone, this bundle delivers commercial-grade performance and durability from the ground up.
Each tile is manufactured using our exclusive cold-mould process, developed by Cannons UK to ensure precise sizing, a low-friction surface, and a uniform finish.
While many rubber tiles are hot-pressed — and therefore prone to crumbling, warping, or size inconsistencies — Flatline PRO is cold-pressed for a tighter fit, superior durability, and no overpowering smell. The solid grey colour creates a clean, neutral aesthetic that suits modern gym spaces.
This set is perfect for fitness professionals, PT studios, or home users needing wide-area, pro-level flooring.
✅ What’s Included in This Set:
- 55 x Flatline PRO Solid Grey Rubber Tiles – 1m x 1m x 20mm each
- Coverage: 55 square metres (55m²)
- Cold-pressed edges for a tight, seamless fit
- Each tile weighs approx. 18.5kg – no adhesive required
- Certified slip resistance (R10 / Class DS)
- Sound reduction up to 23 dB depending on subfloor
♻️ Safe. Sustainable. Certified.
Flatline PRO tiles are manufactured using non-toxic, low-VOC polyurethane binders imported from Germany. We are the only UK supplier with rubber gym mats that are both REACH-certified (click here) and VOC-tested for safety and indoor air quality. [Click here]
🔒 Warranty
Every tile is backed by a 3-year guarantee against cracking and colour fading. [View warranty]
📘 Installation Help
Need advice on fitting or cutting your gym flooring?
Read our expert guide: [How to Install Gym Flooring Tiles] |
[How to Cut Gym Mats]
Available Flatline PRO Solid Grey Set Sizes:
Certificates
🔒 Certified Flooring Quality – Backed by Industry-Recognised Testing
At Cannons UK, we prioritise transparency, safety, and compliance. Every tile in our Flatline PRO rubber flooring range is backed by trusted, independently verified certifications — ensuring it's safe for indoor use in home gyms, garages, PT studios, and commercial spaces.
From VOC emissions and REACH compliance to fire ratings and ISO-certified manufacturing, we give you clear, traceable proof that your flooring meets the highest UK and EU standards.
Whether you're fitting out a home gym or a public fitness facility, choosing certified flooring ensures insurance compliance, low odour, and safe long-term use — with no nasty chemicals or surprises.
📄 Our Certifications Include:
- ✅ REACH Compliant – free from restricted or harmful substances
🔗 View REACH Certification - ✅ VOC Tested – ultra low emissions, safe for enclosed spaces
🔗 VOC Results - ✅ Impact & Sound Insulation Tested – up to 23dB reduction in impact noise
🔗 Sound Test Certificate - ✅ CE Certified Factory – compliant with EU manufacturing and safety standards
🔗 Learn About CE Marking - ✅ ISO 9001:2015 – quality management system
🔗 View Certificate - ✅ ISO 50001:2024 – energy management and sustainability
🔗 View Certificate - ✅ EN ISO 5470-1:2001 – abrasion resistance for high-wear areas
🔗 View Test Report - ✅ ISO 14001:2015 – environmental management
🔗 View Certificate - ✅ ISO 45001:2018 – health and safety management
🔗 View Certificate
If you need copies of these certifications for building control, architects, insurers, or tenders – just 📩 contact us. We're happy to help.
Delivery
🚚 Free Next-Day Delivery – UK Mainland Orders Over £99.99
Eligibility:
Orders placed before 1 PM (Monday to Friday) and totalling over £99.99 qualify for free next-day delivery to most UK Mainland addresses.
Exclusions:
Some parts of Scotland may incur a delivery surcharge. Any additional charges will be shown at checkout.
Delivery Schedule:
Deliveries are made Monday to Friday.
Next-day delivery has a 98% success rate, but please note it cannot be guaranteed due to courier limitations.
International & Offshore Orders:
For delivery to Northern Ireland, offshore islands, or locations outside the UK Mainland, please contact us:
📧 Email: sales@cannonsuk.com
📞 Phone: 01379 687768
FAQ
❓ Frequently Asked Questions
🔧 Do I need adhesive to install these tiles?
No adhesive is required. Each tile weighs approximately 18.5kg, providing enough weight and density to stay firmly in place. For large areas or high-impact zones, you can optionally use double-sided tape or edging for added security.
📏 What are the dimensions and tolerances?
Each tile measures 1m x 1m and is 20mm thick. Thanks to our cold-press manufacturing process, size tolerances are extremely defined:
– Length/width tolerance: ±0.5%
– Thickness tolerance: ±1%
🦶 Are these tiles non-slip?
Yes. These tiles are certified R10 slip resistant (DIN 51130) and Class DS (EN 14041), providing excellent grip for both dry and slightly wet conditions.
🧼 How do I clean the flooring?
Sweep or vacuum regularly to remove debris. For deeper cleaning, use a mop with warm water and a mild pH-neutral cleaner. Avoid harsh solvents or bleach. If using chalk ensure this is vacuumed before mopping to avoid issues when the chalk dust dries.
📄 View our Cleaning Guide
🔇 Will these tiles help reduce noise?
Yes. The dense rubber construction provides sound reduction of approx. 18–23 dB, depending on your subfloor and installation method. Perfect for reducing dropped weight impact noise in home or commercial gyms.
🧪 Are the mats tested for safety and emissions?
Absolutely. These tiles are REACH compliant and VOC tested for indoor use. They are free from toxic binders and strong odours, making them suitable for closed environments.
🔥 What is the fire safety rating?
These tiles are rated as Class B2 (EN 13501) for normal inflammability. Always check with your local building or insurance regulations for commercial installations.
🛠️ How do I cut the tiles to fit my space?
You can easily trim them using a sharp Stanley knife and a straight edge. For curved cuts, score the tile multiple times before applying pressure to separate.
📦 How are the tiles delivered?
Orders placed before 1 PM qualify for free next-day delivery on UK Mainland orders over £99.99. Tiles are shipped flat on pallets and are heavy, so please ensure safe access for delivery.
Samples
"Try it before you commit! Click here to purchase a small sample today!"
Specification
📊 Technical Specifications – Flatline PRO Rubber Gym Tiles
🔇 Sound Reduction:
Improves impact noise by approx. 18–23 dB, depending on subfloor and installation
🦶 Anti-Slip Ratings:
- R10 Slip Resistance (DIN 51130)
- Class DS (EN 14041 – safer indoor flooring rating)
⚡ Electrical Properties:
- Antistatic: –0.7 kV
🧪 Material Composition:
- Recycled SBR rubber, bonded with low-VOC polyurethane
- REACH compliant and VOC tested
📏 Physical Specs:

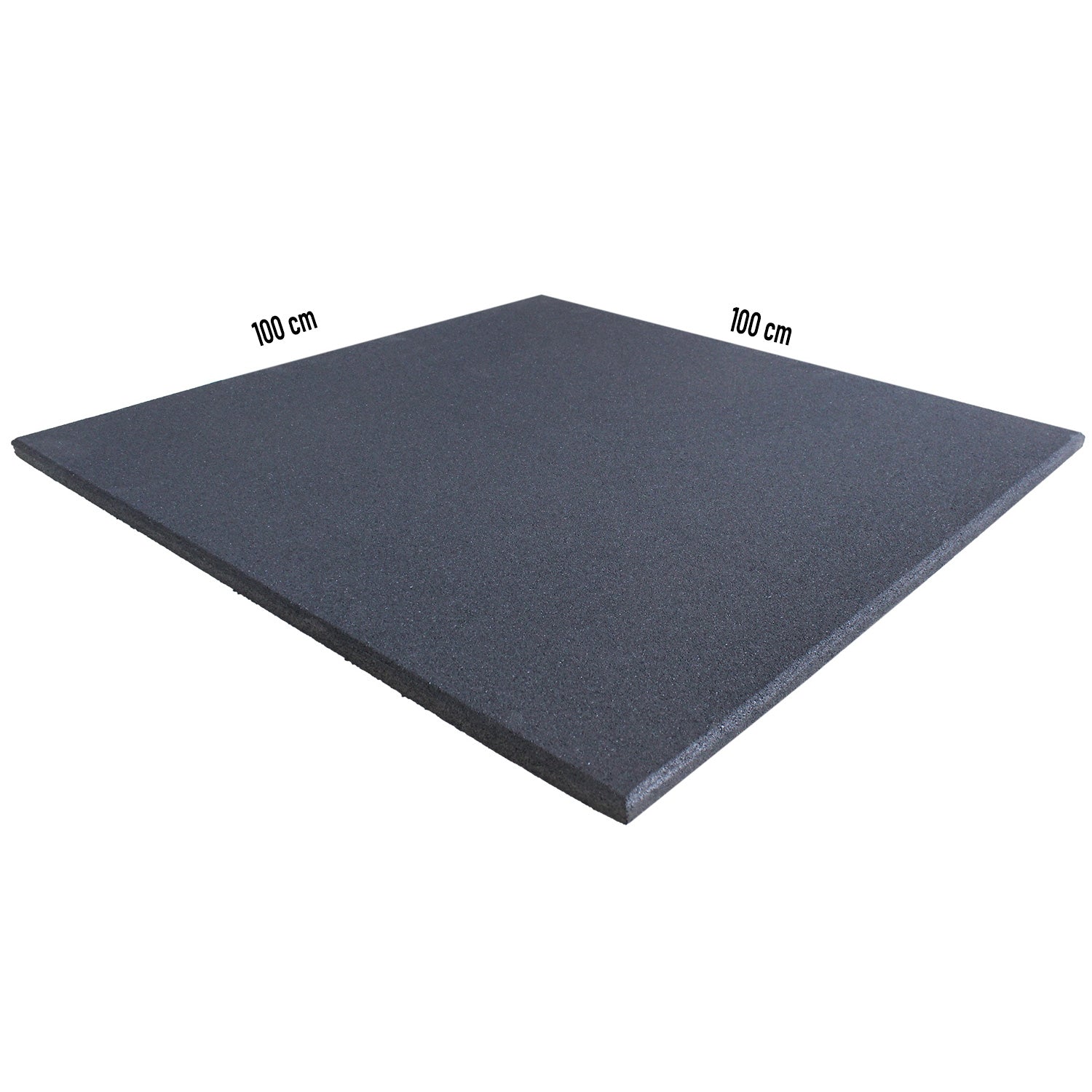

- Tile size: 1000mm x 1000mm
- Thickness: 20mm
- Weight per tile: ~18.5kg
- Bulk density: 950–980 kg/m³
- Tensile strength: 1.38 N/mm²
- Force reduction: 10–18%
- Max drop weight: 150kg
- Length tolerance: ±0.5%
- Thickness tolerance: ±1%
🔥 Thermal & Fire Resistance:
- Working temp: –30°C to +80°C
- Short-term tested: Up to +300°C
- Thermal conductivity: 0.17 W/(m·K)
- Expansion coefficient: 23.1×10⁻⁵/°C
- Fire rating: Class B2 (EN 13501)
💧 Environmental Properties:
- Vapour permeable
- Resistant to water, diluted acids/alkalis
- UV-resistant, chemically neutral (EN 423)
