Flatline PRO Garage Gym Flooring Set – 27m² (27× 1m×1m×20mm Tiles)
| Depth: | 20mm |
|---|---|
| Length: | 1m |
| Width: | 1m |
| Buy more, save more! |
|---|
Check out safely using your preferred payment method
Frequently bought together
Heavy-Duty 27m² Flatline PRO Garage Gym Flooring Set – 20mm

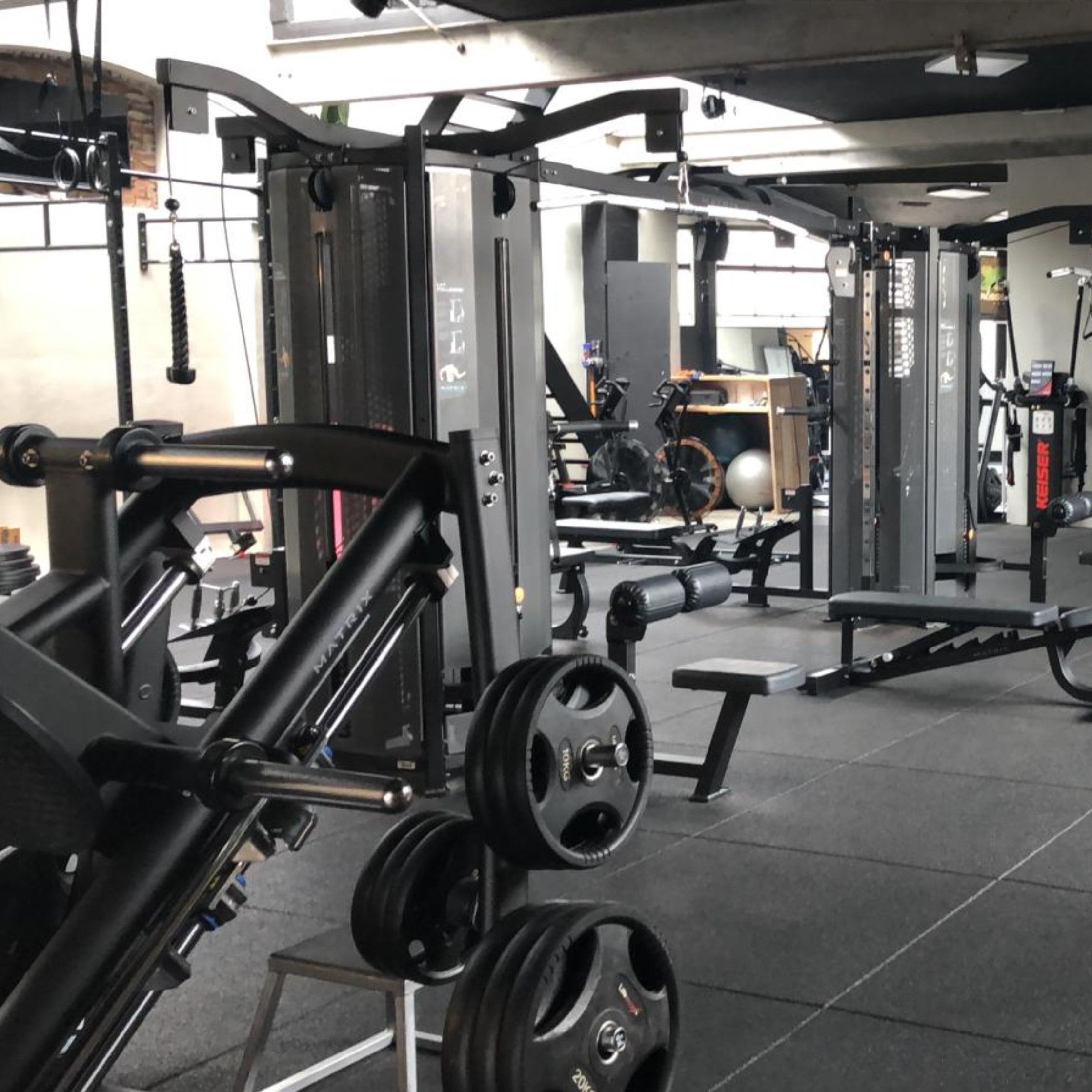

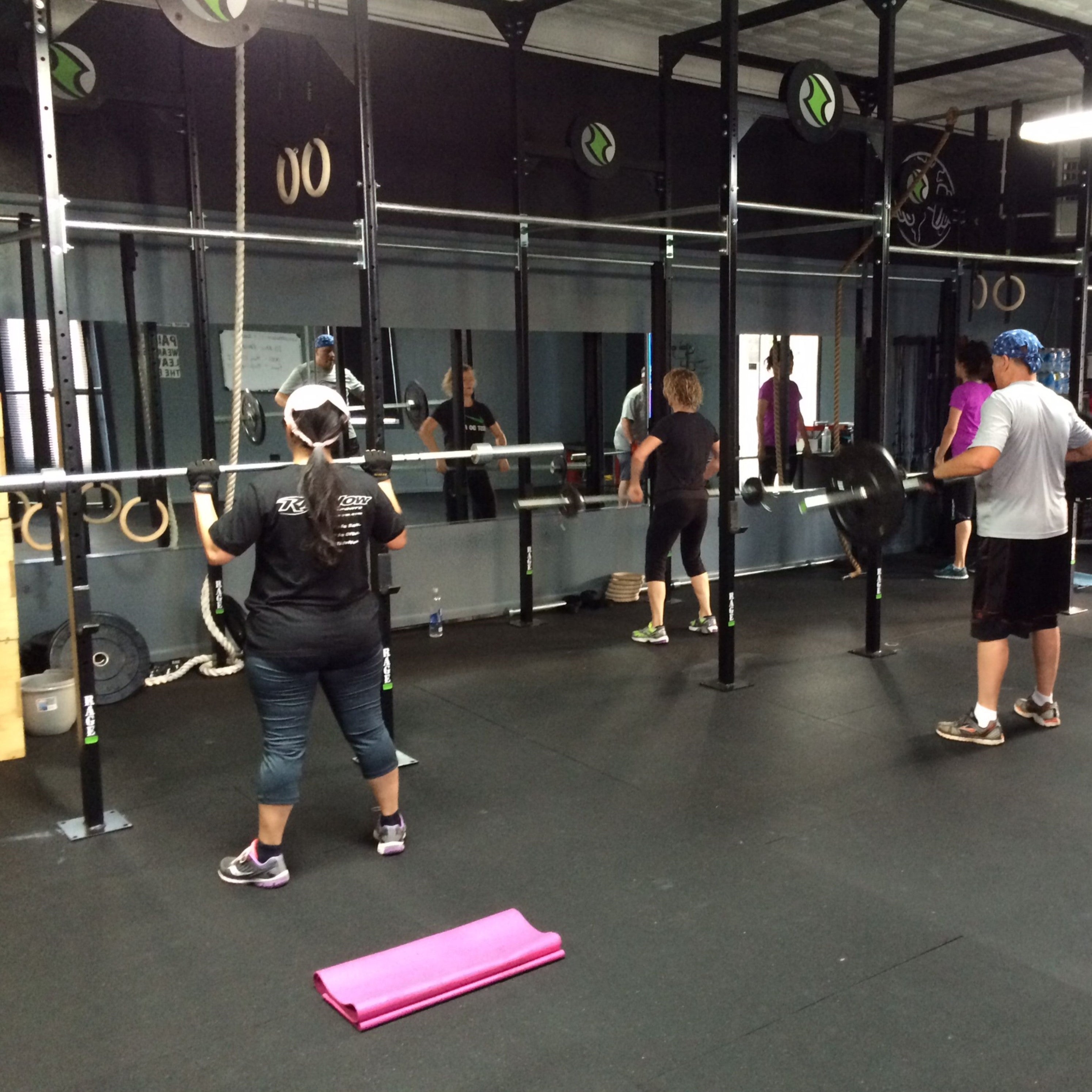

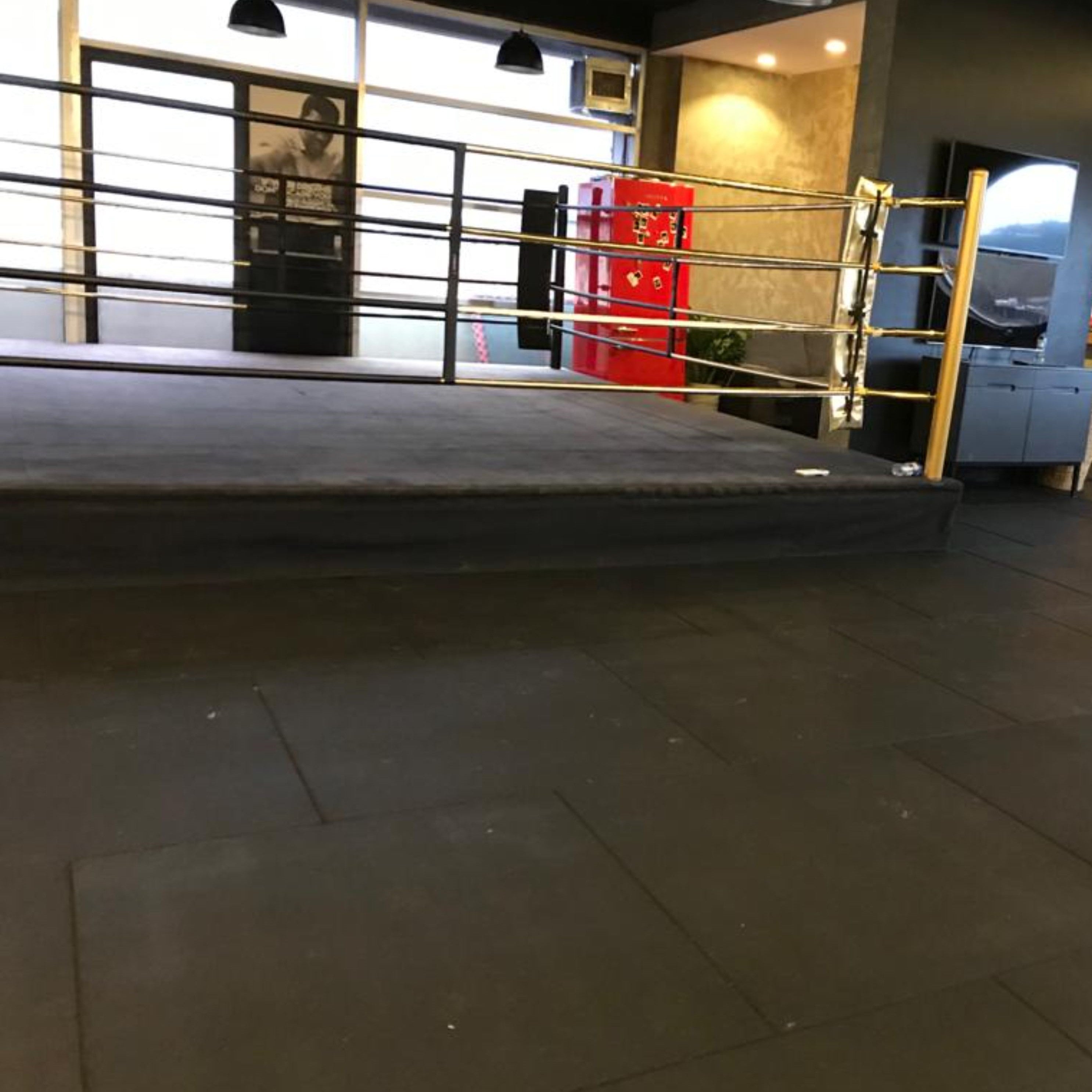

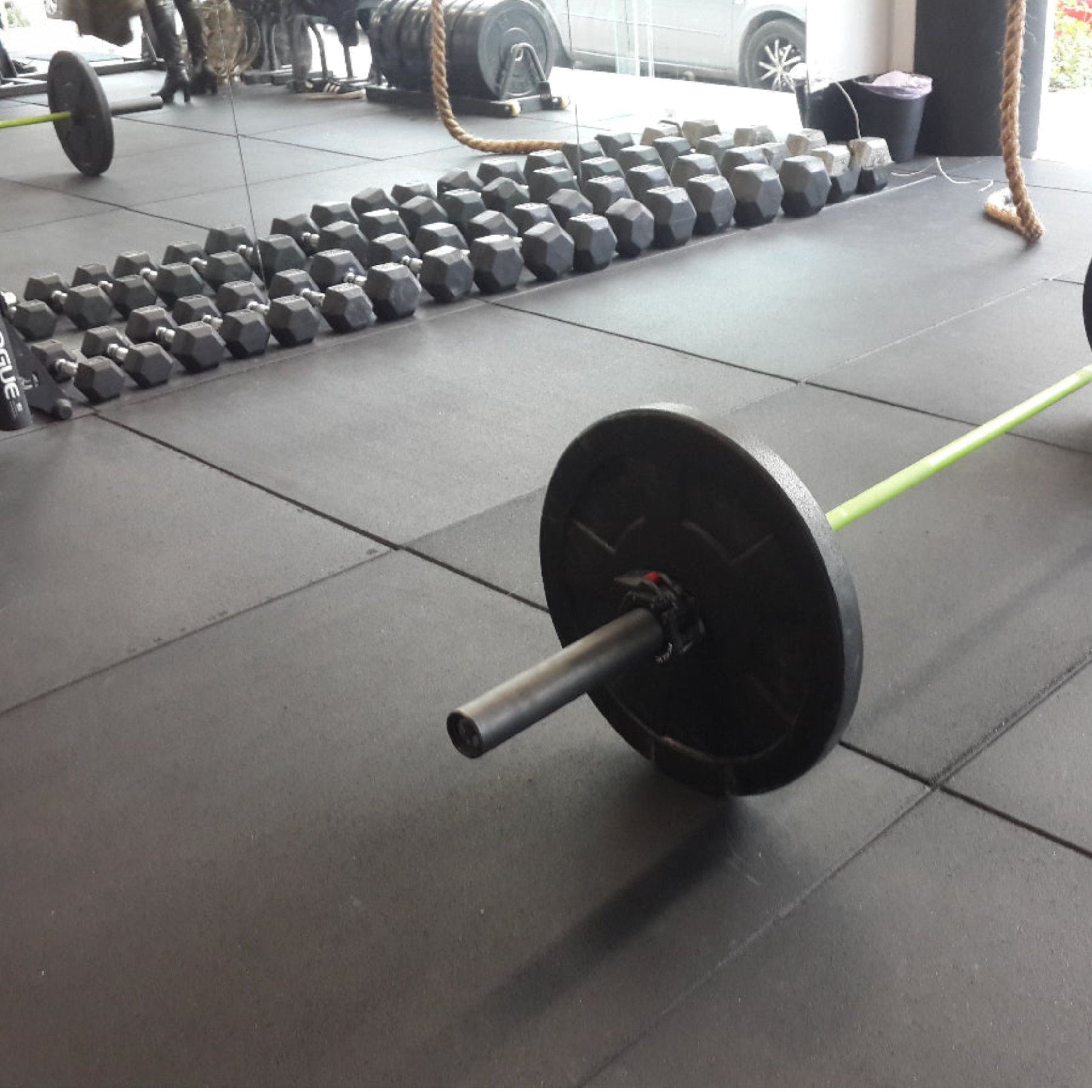

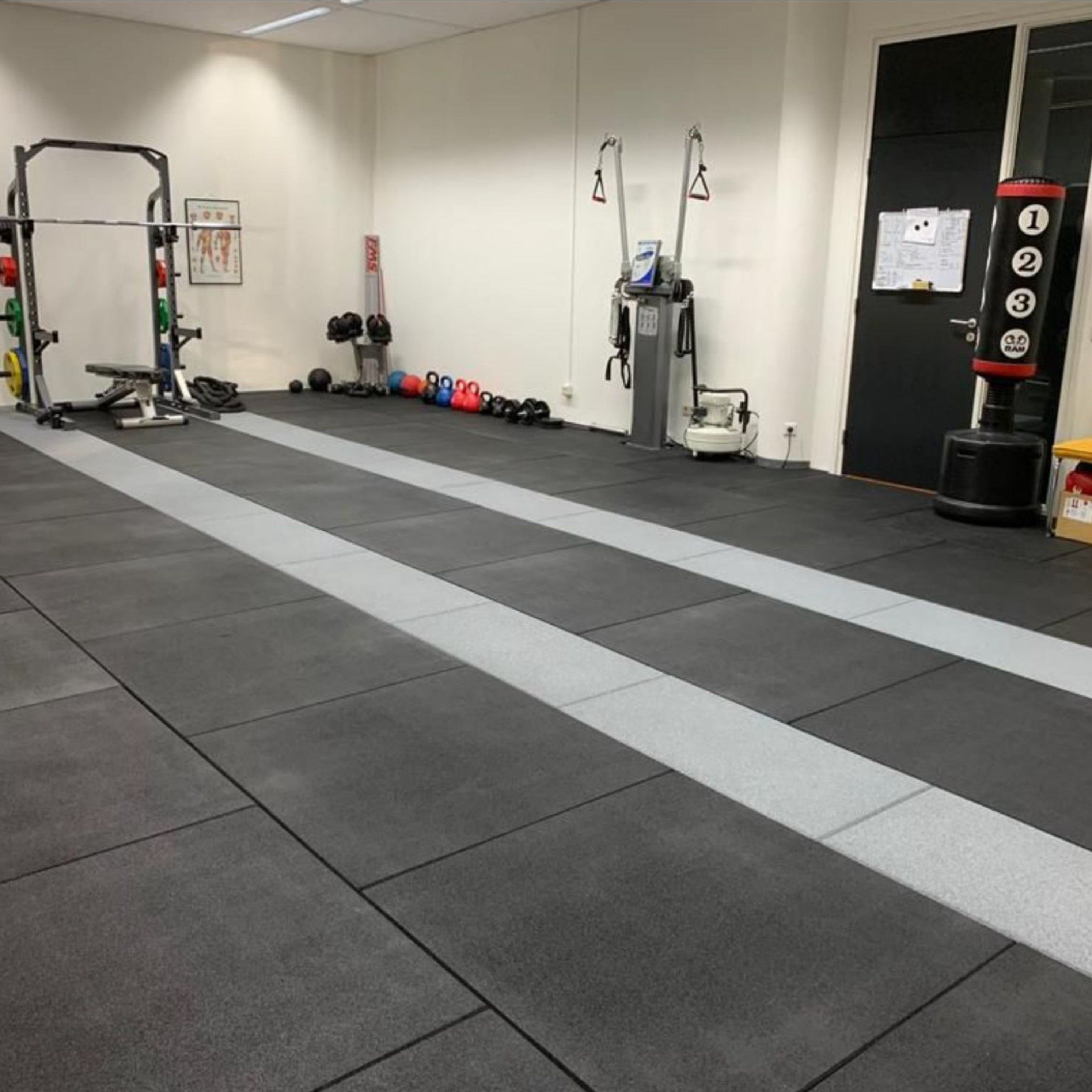

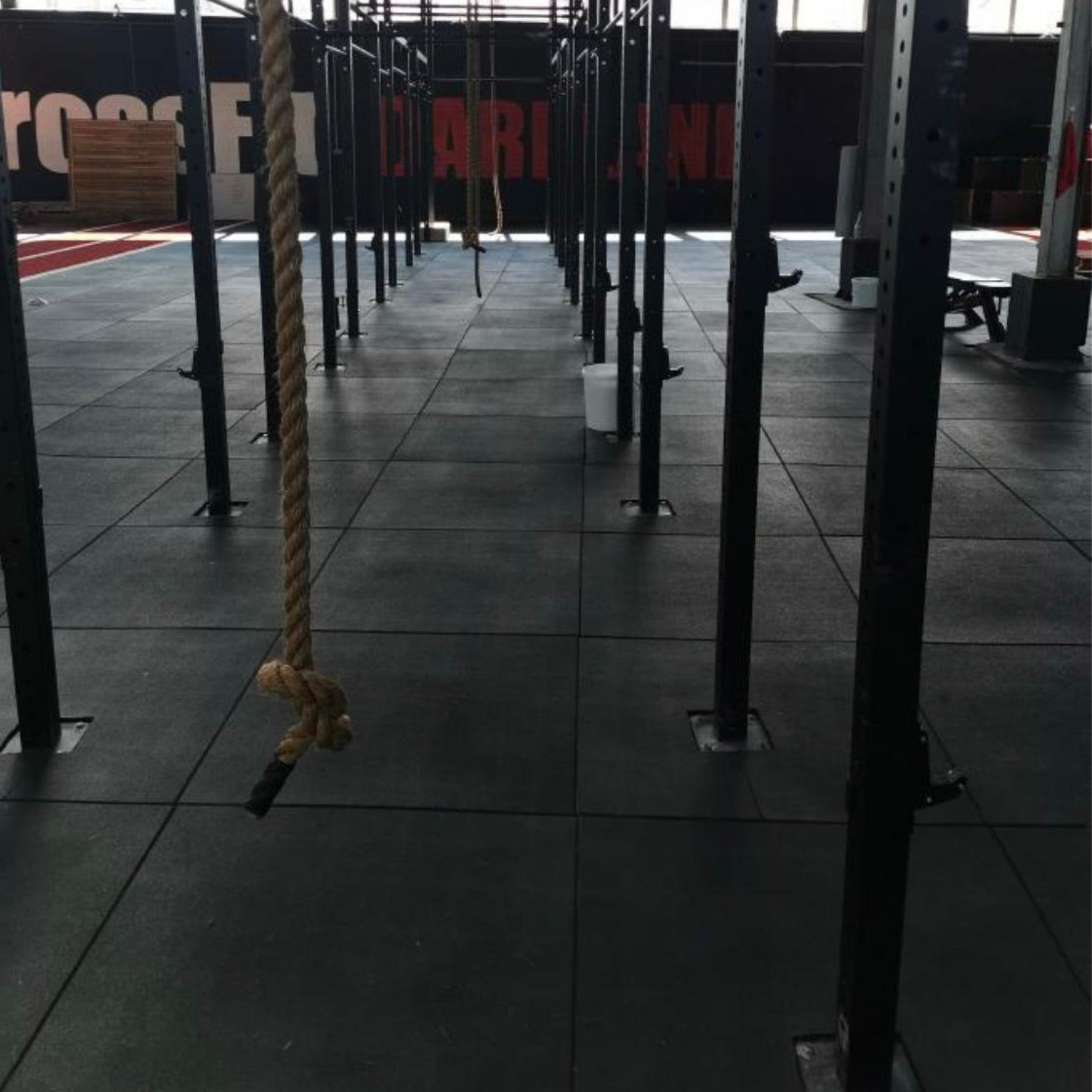

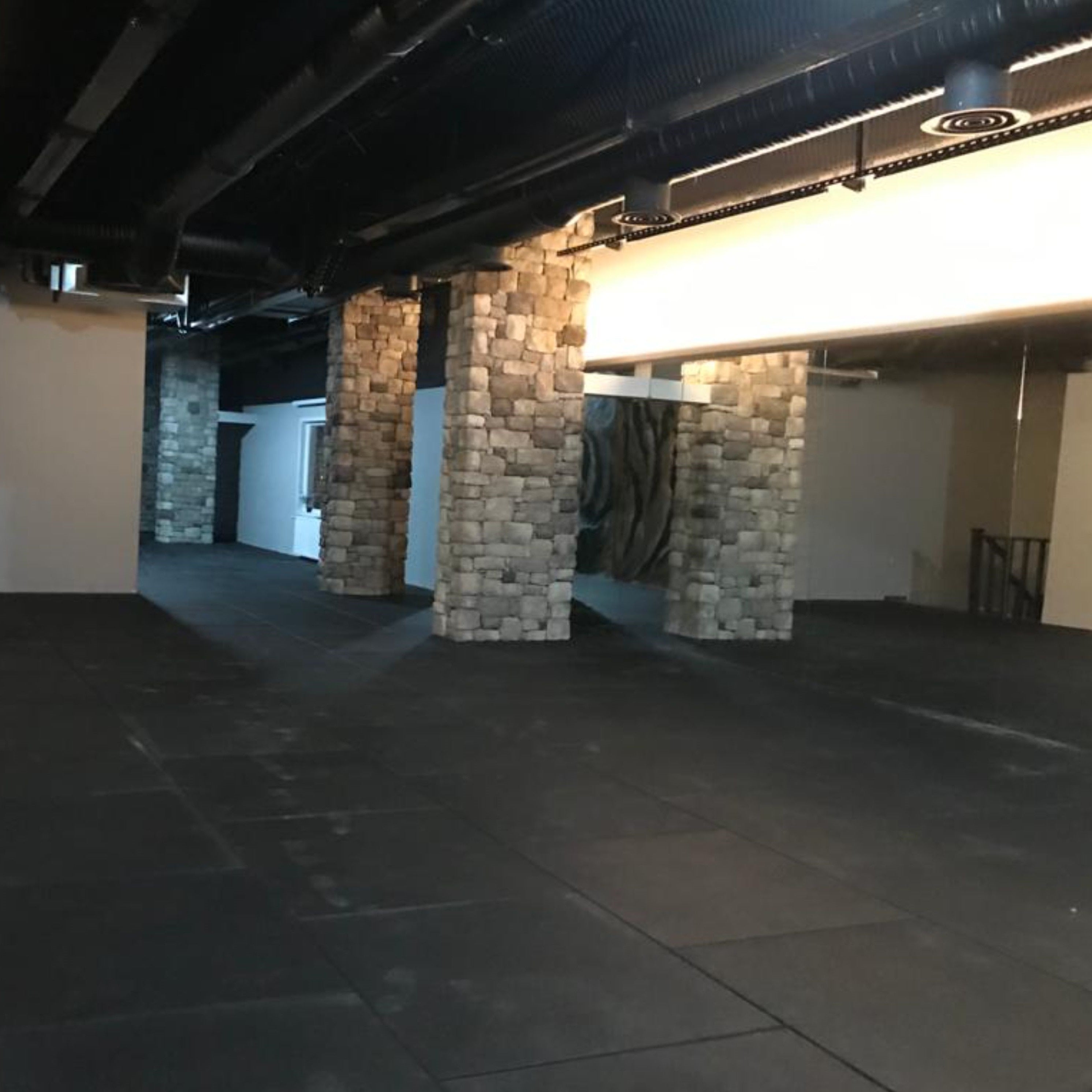

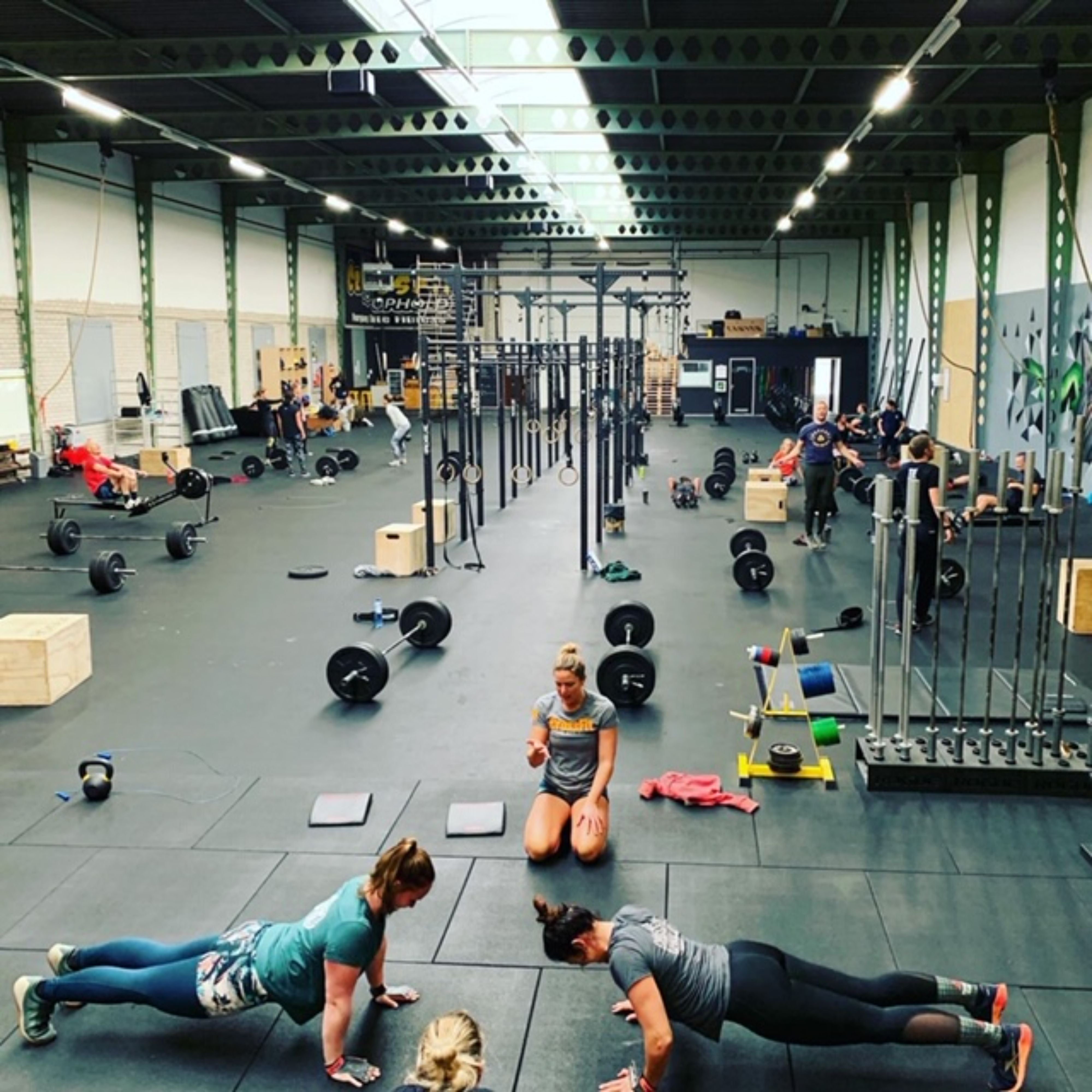

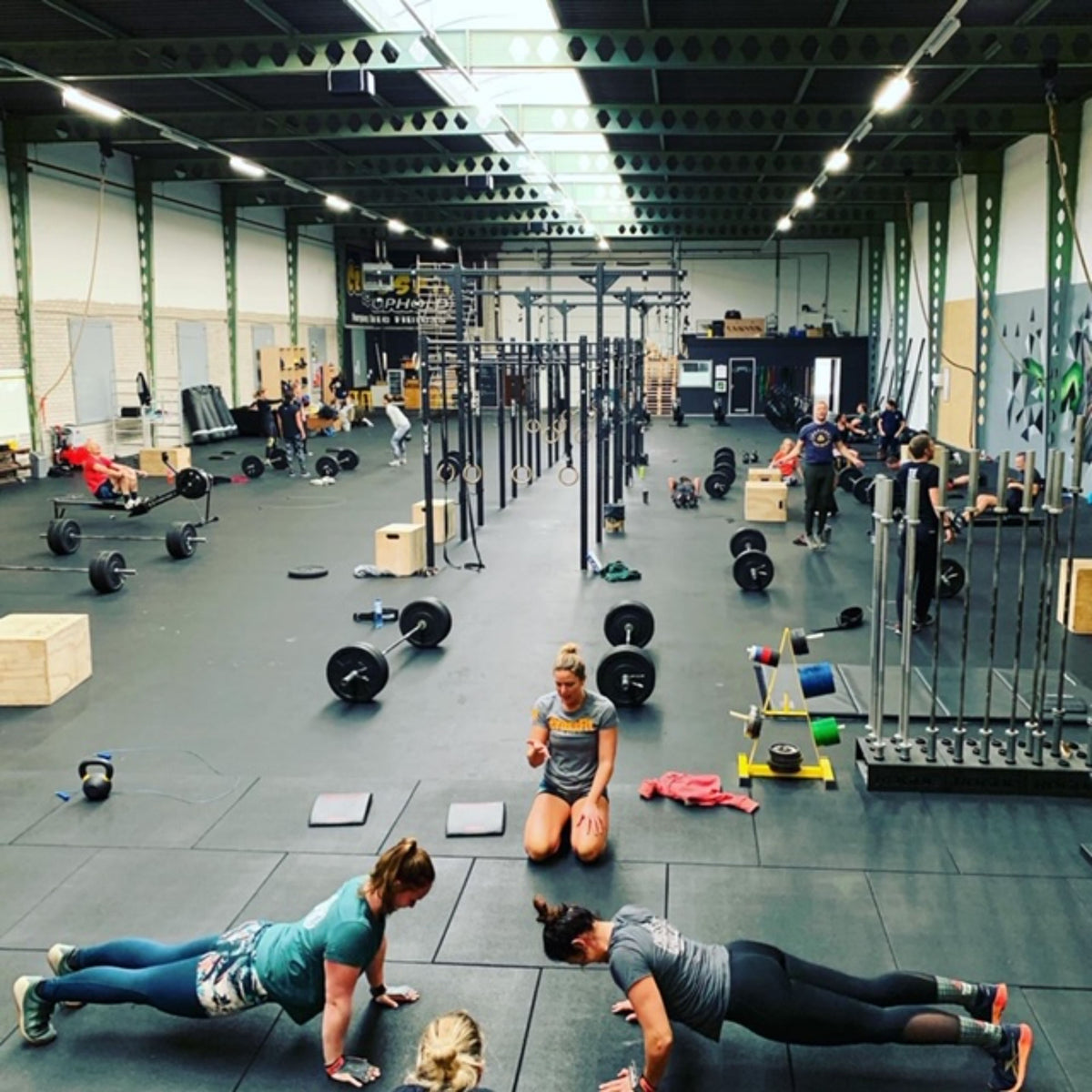

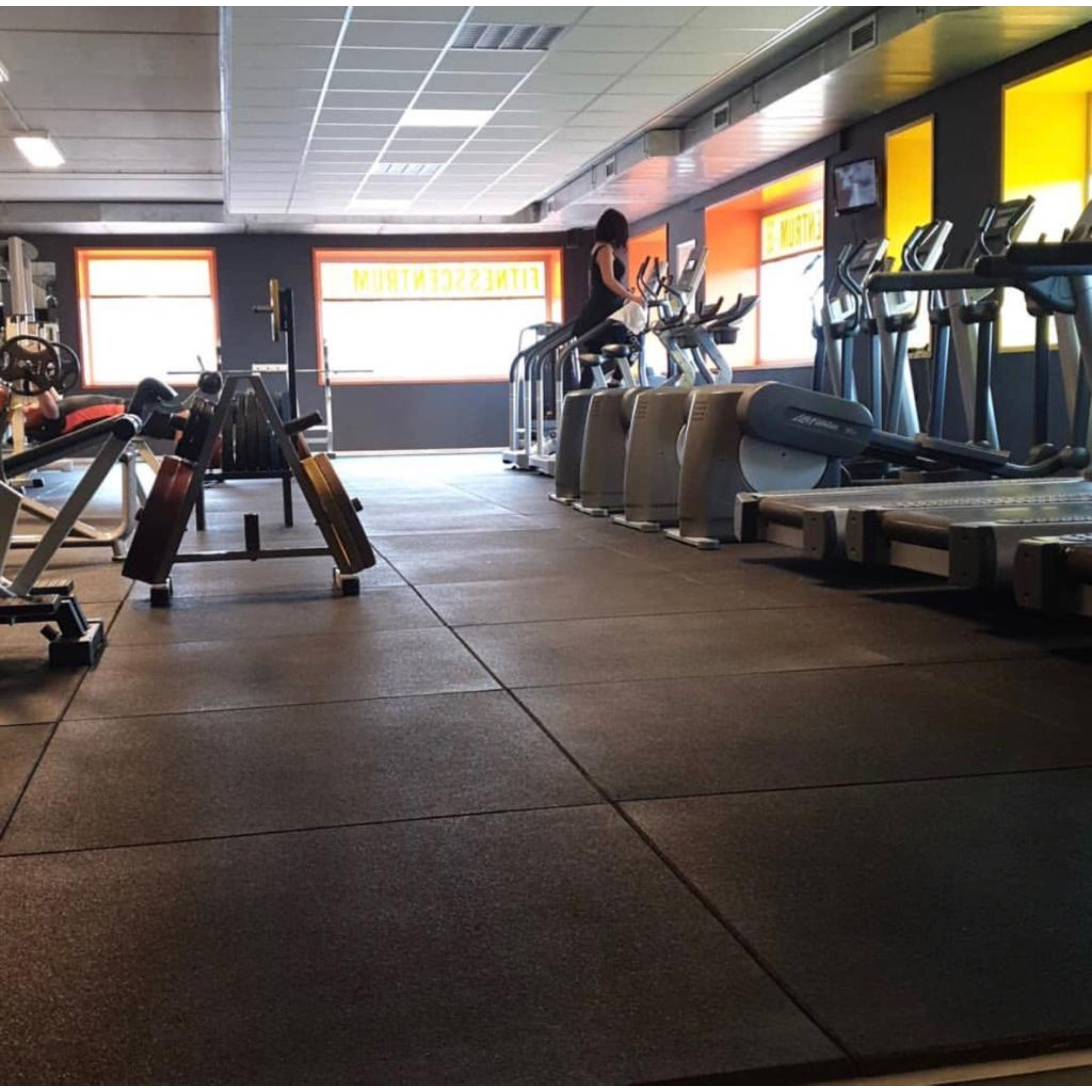

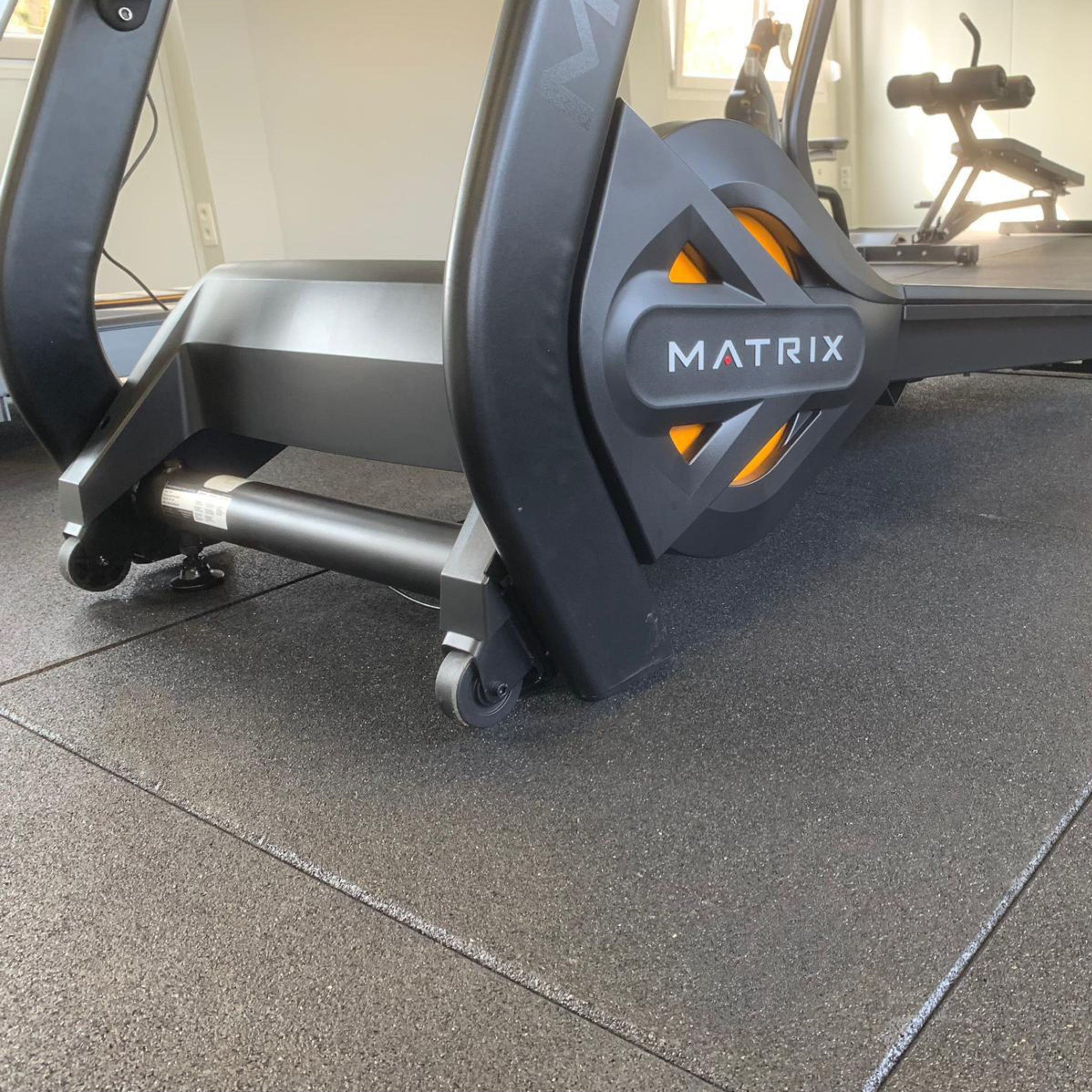

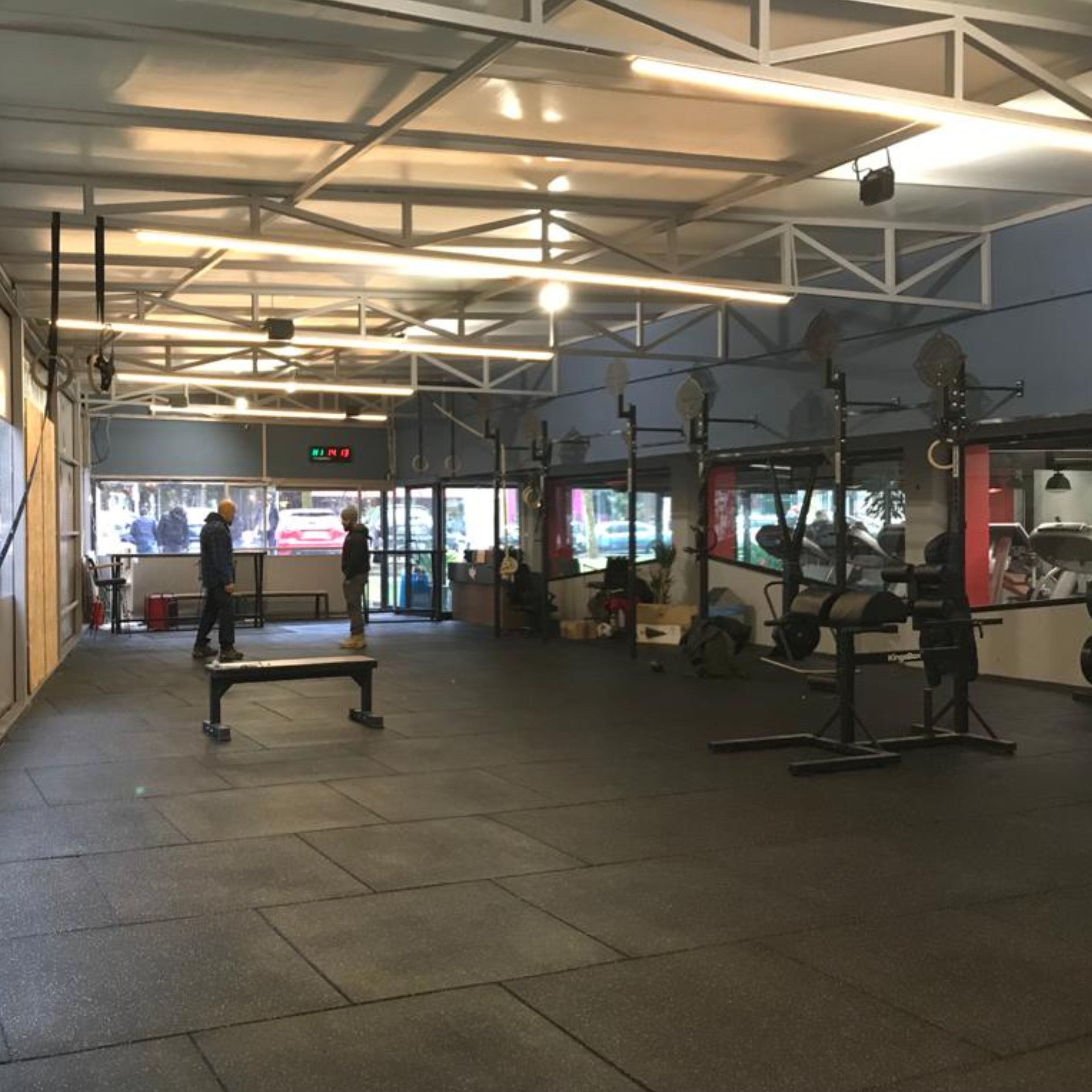

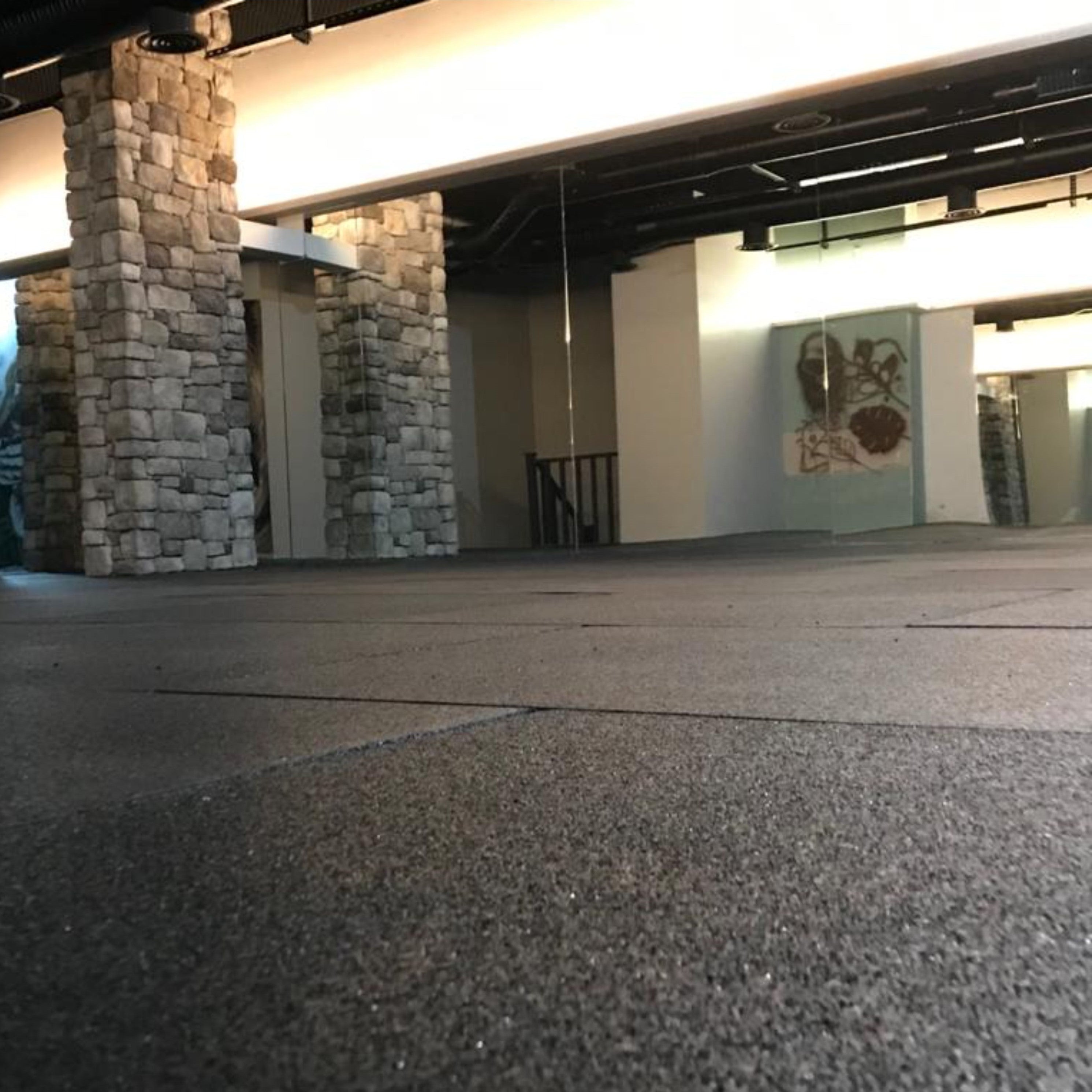

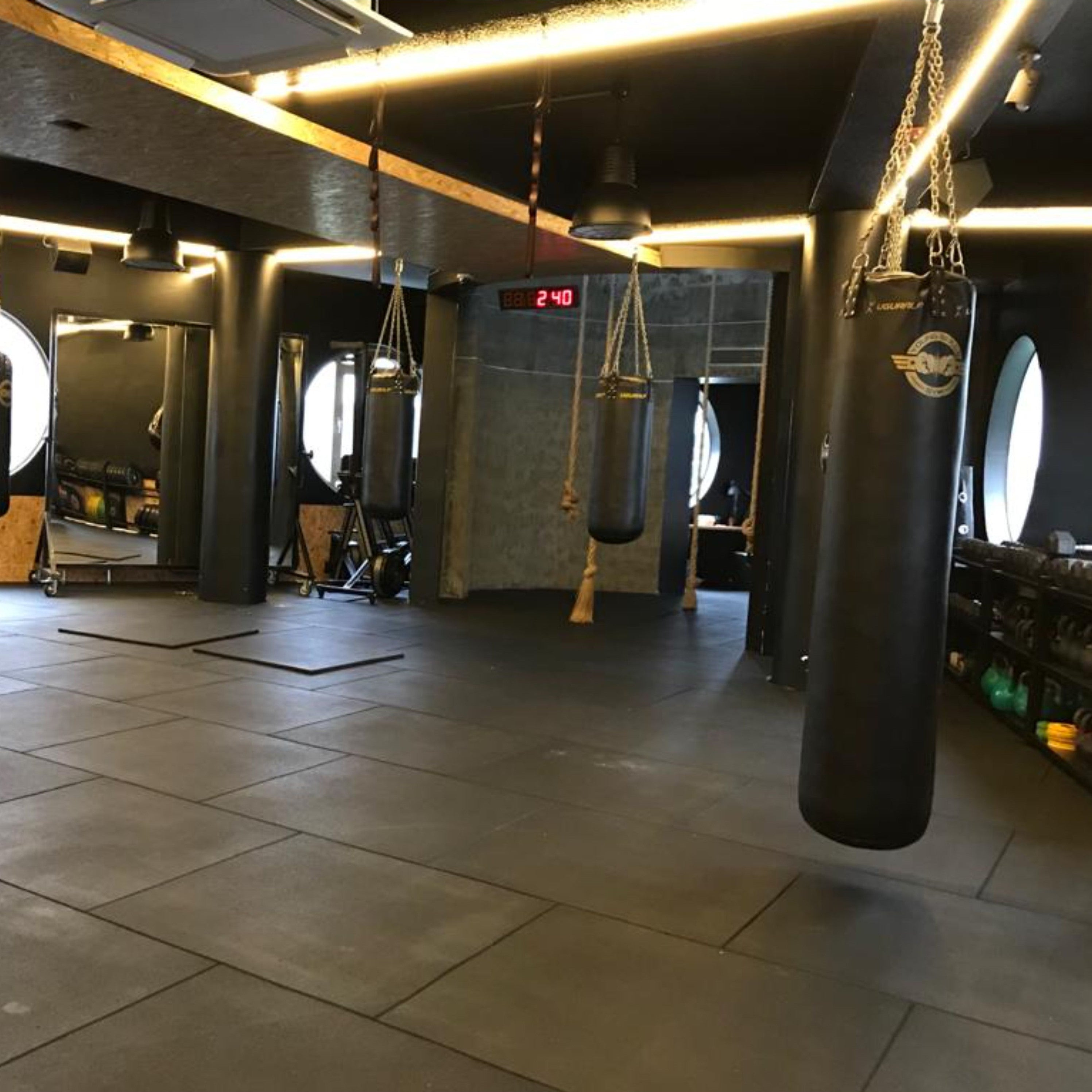

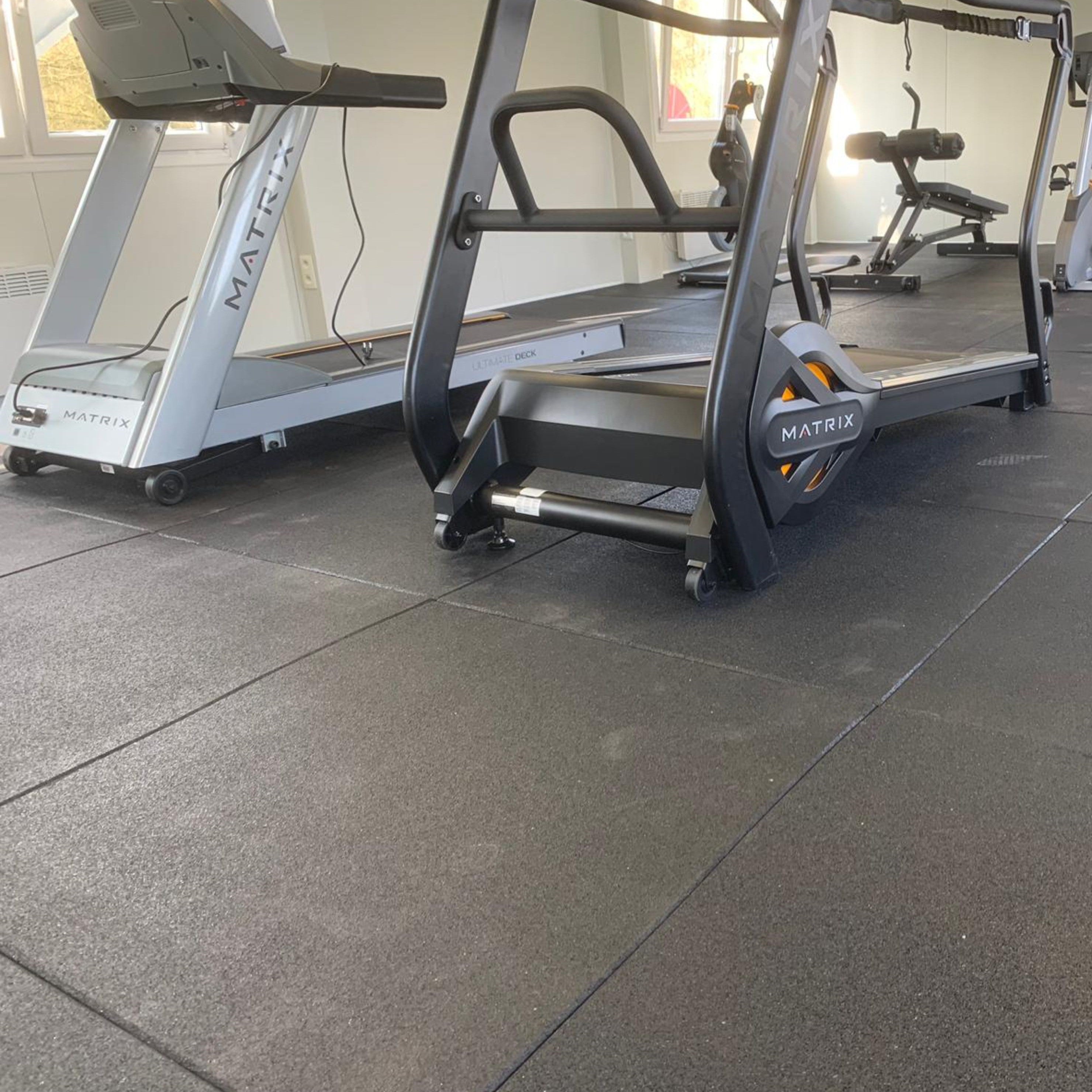

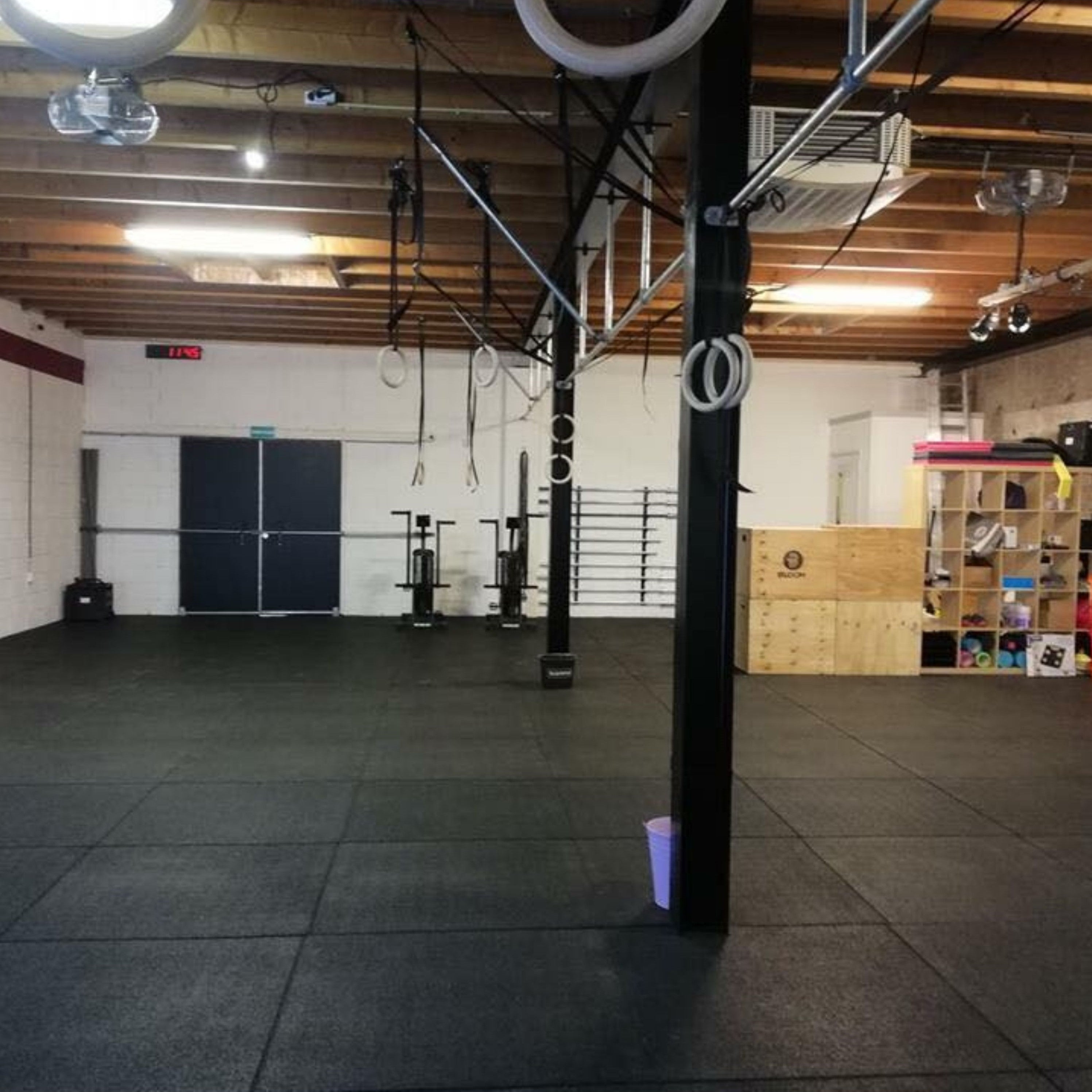

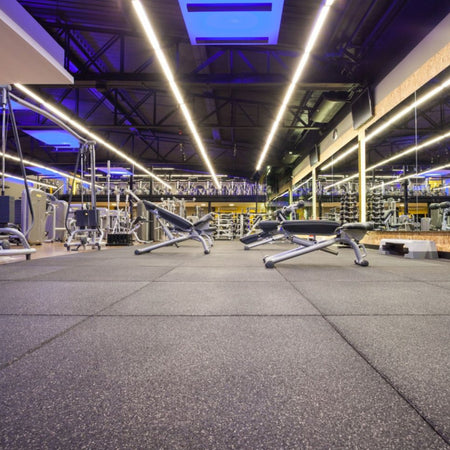

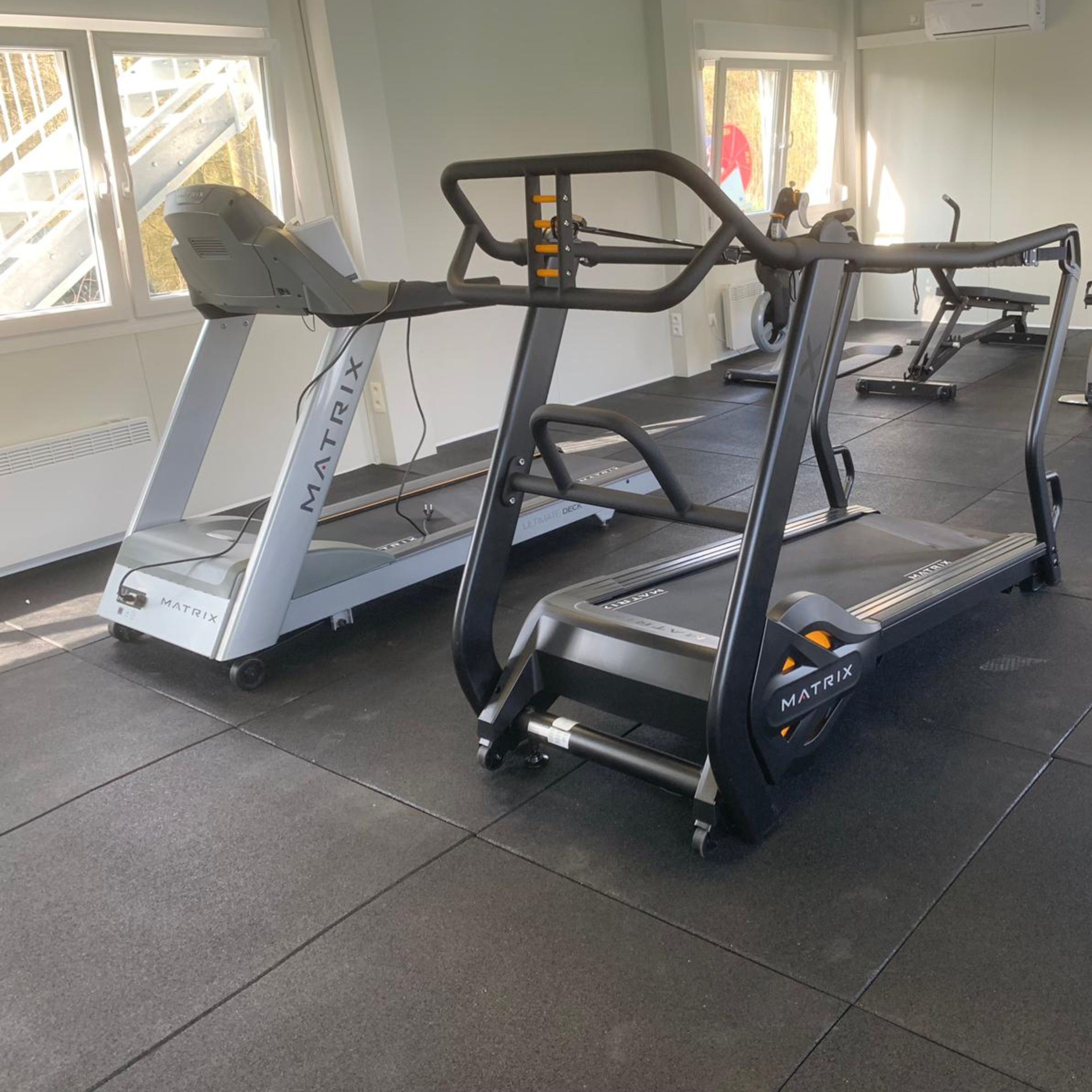

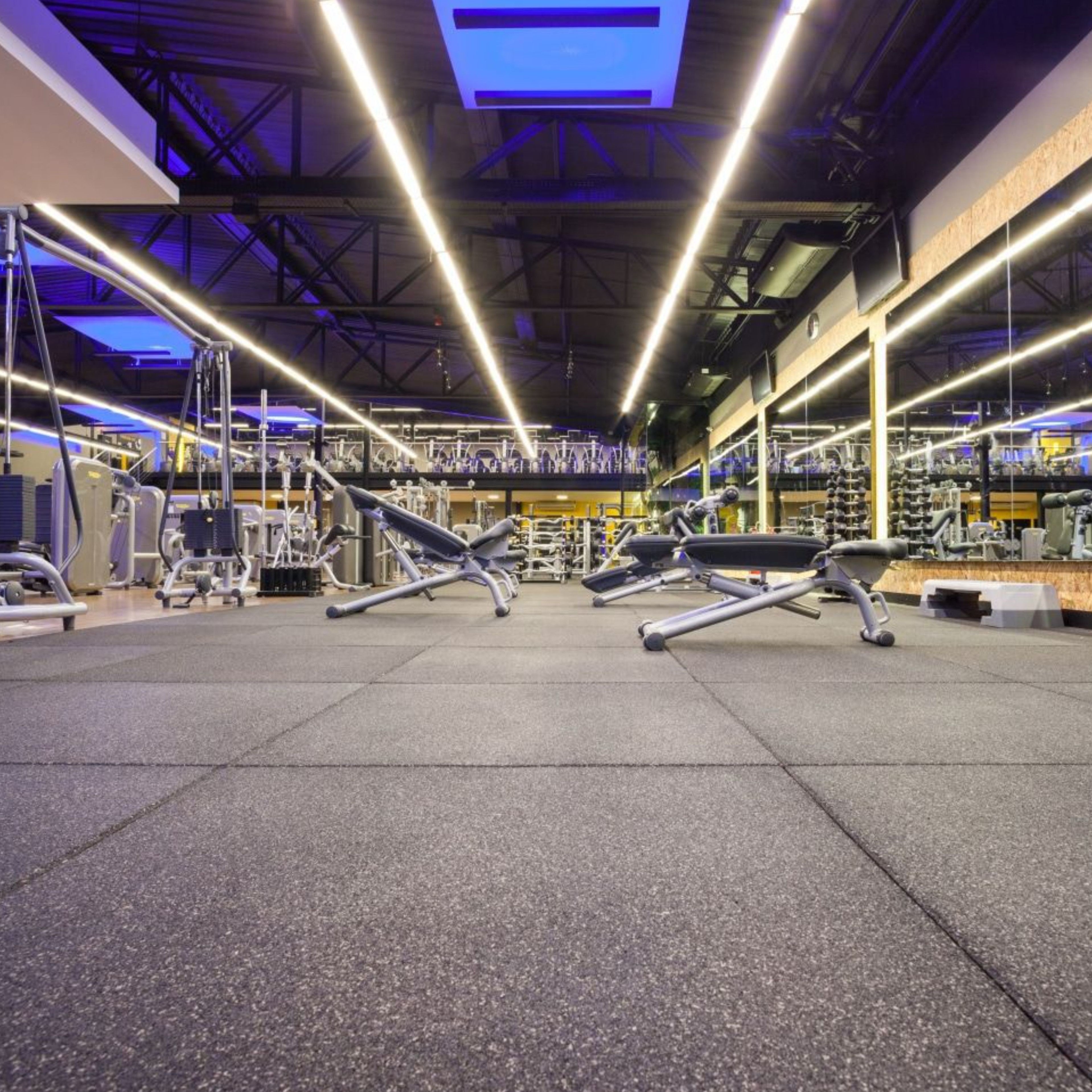

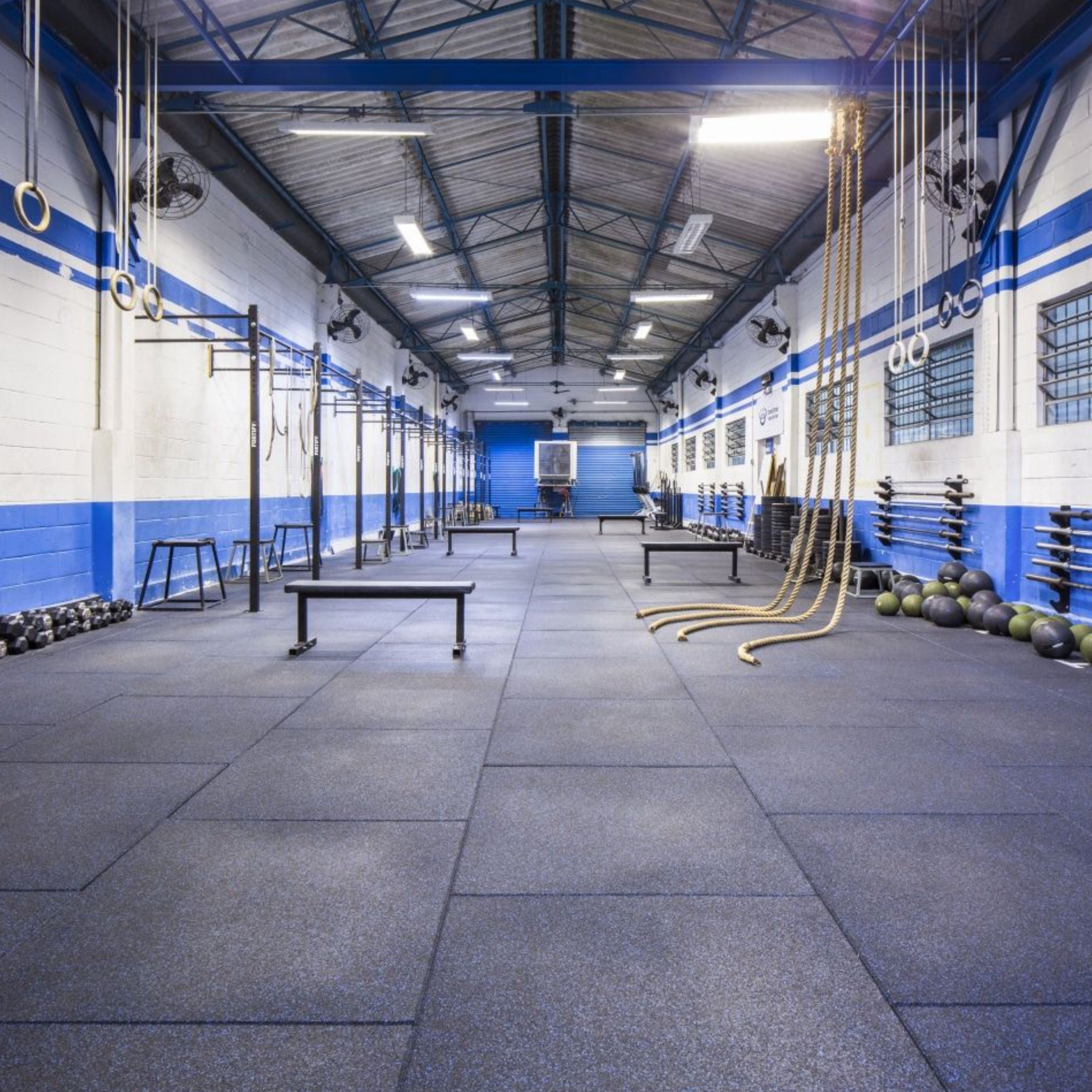

This 27-tile pack is the ideal solution for double garages or large gym areas at home. Each 1m x 1m tile is 20mm thick, made from high-density recycled SBR rubber, and cold-pressed for precision. With a combined weight of nearly 500kg, this flooring system stays solid under heavy loads — perfect for squat racks, lifting platforms, or functional training zones.
- ✅ 27m² total coverage (27 tiles – 1m x 1m each)
- ✅ 20mm thickness – absorbs shock, reduces vibration & noise
- ✅ Cold-pressed edges – clean joins with ±0.5% tolerance
- ✅ R10 slip rating – safe even on slightly damp garage floors
- ✅ VOC tested & REACH certified – no harsh odours
- ✅ Free UK mainland delivery on orders over £99.99
Great for:

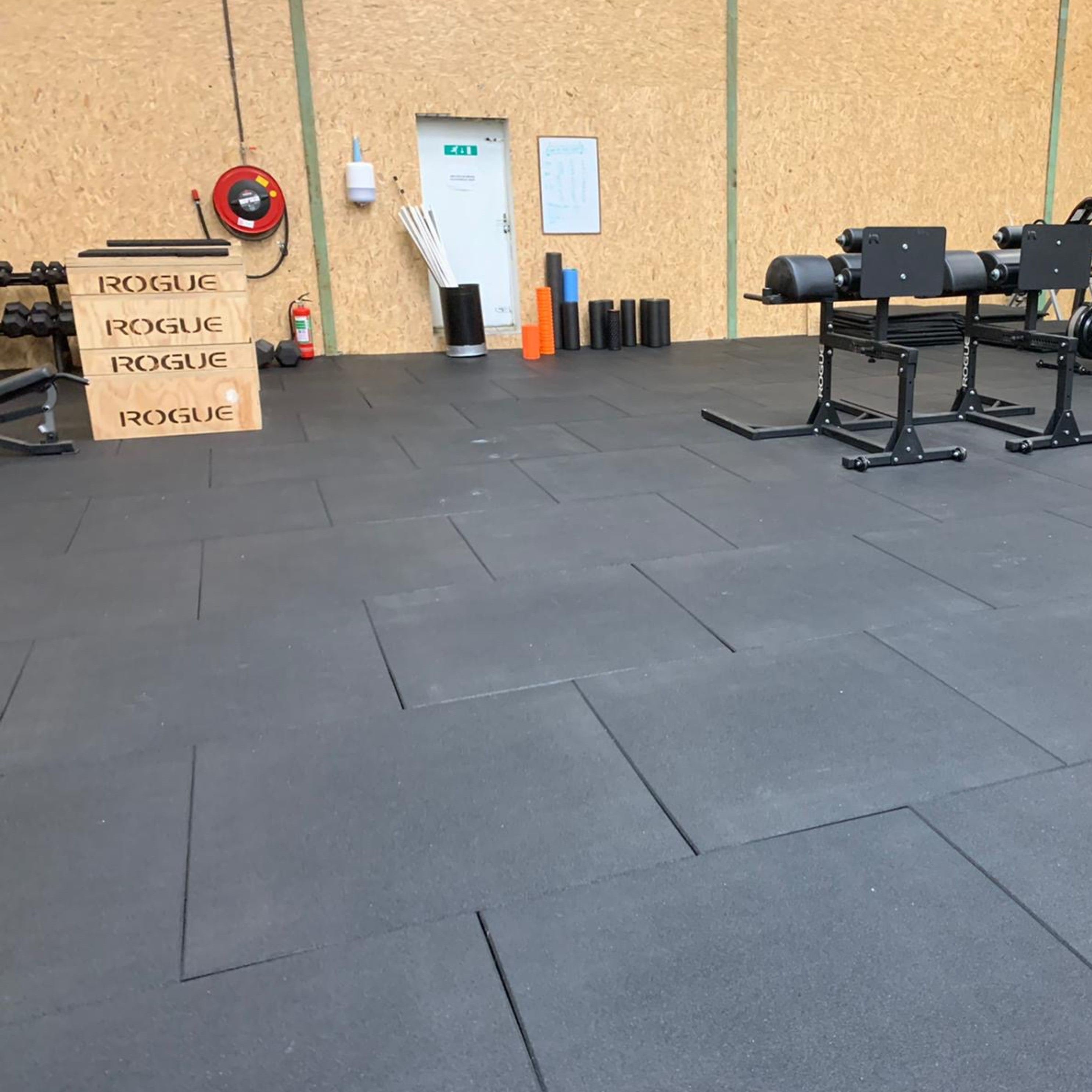

- Double garage gym setups

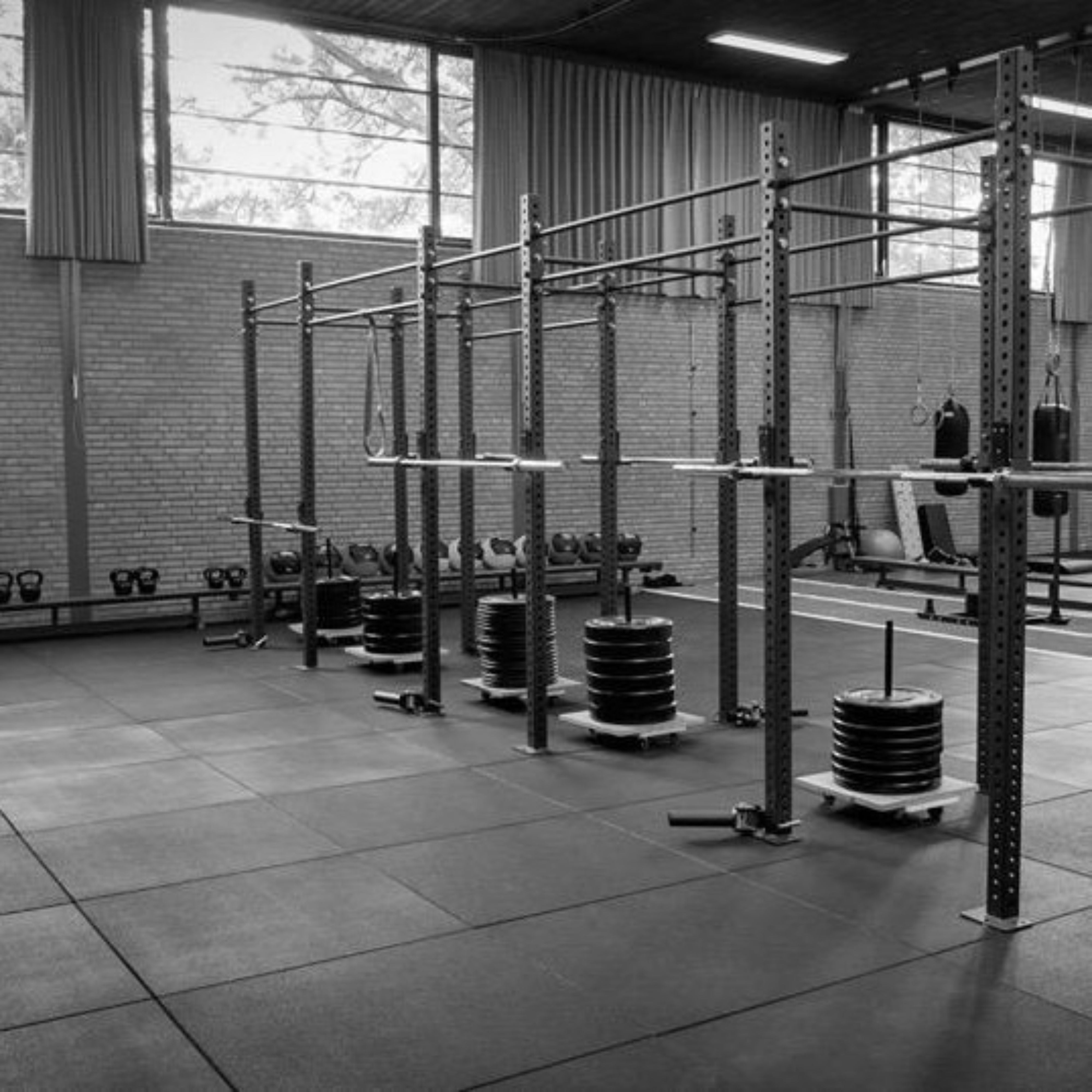

- Heavy weight zones & squat racks
- Functional fitness or HIIT spaces
- PT studios or larger home gym builds
📏 Specifications (per tile):
- Size: 1m x 1m
- Thickness: 20mm
- Weight: ~18.5kg
- Density: 950–980 kg/m³
- Slip rating: R10 (DIN 51130) / Class DS (EN 14041)
- Noise reduction: 18–23 dB
- Max drop weight: 150kg

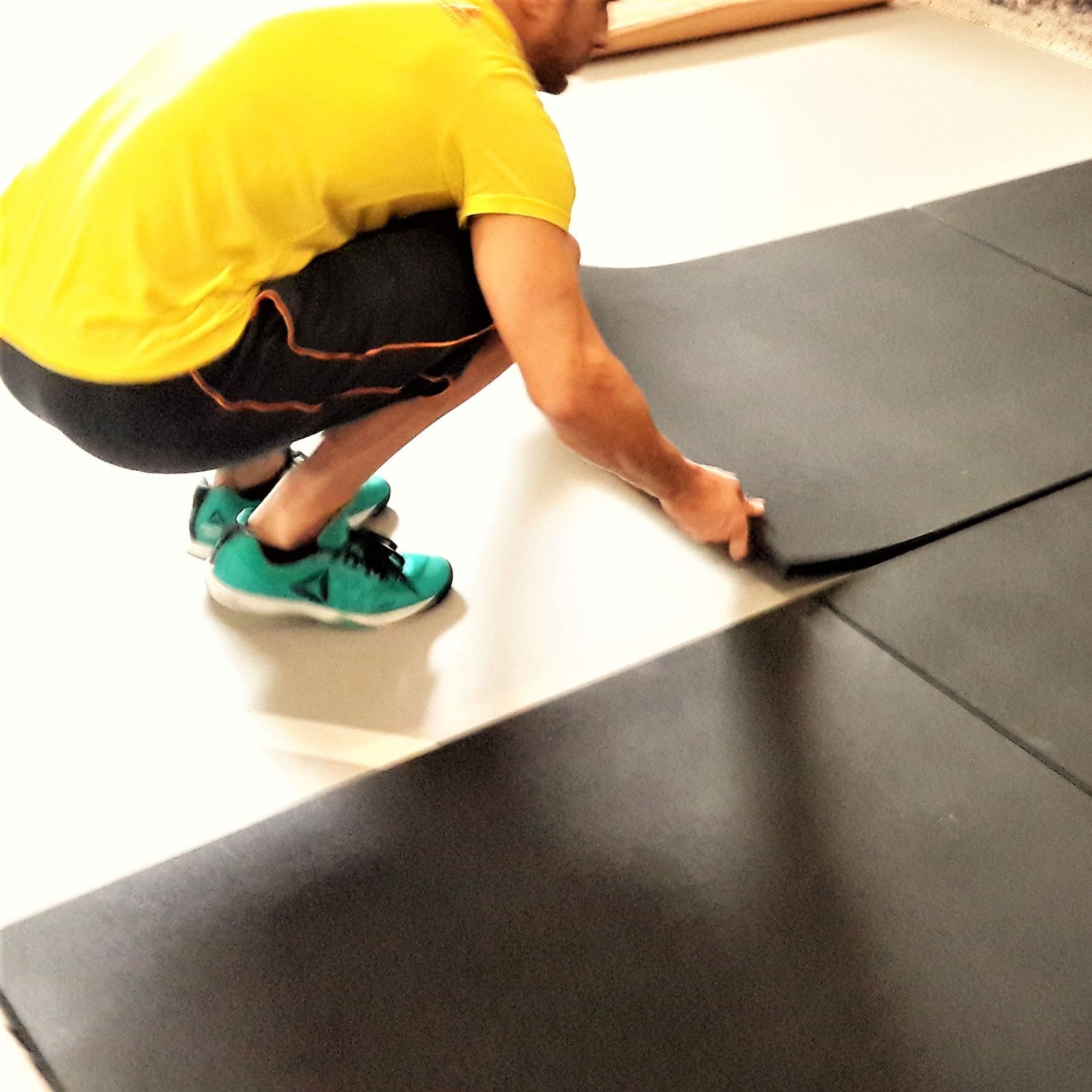

Installation Notes:

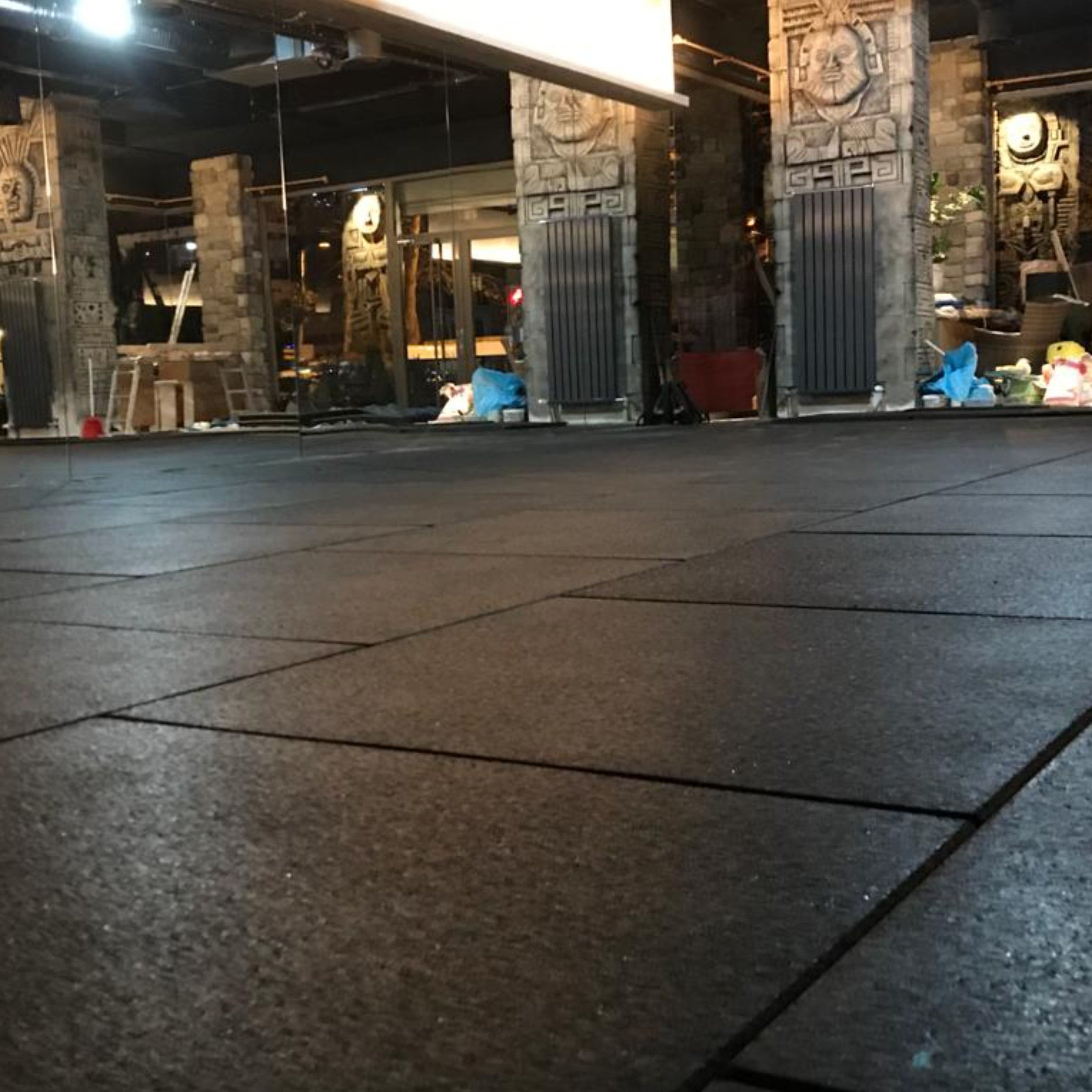

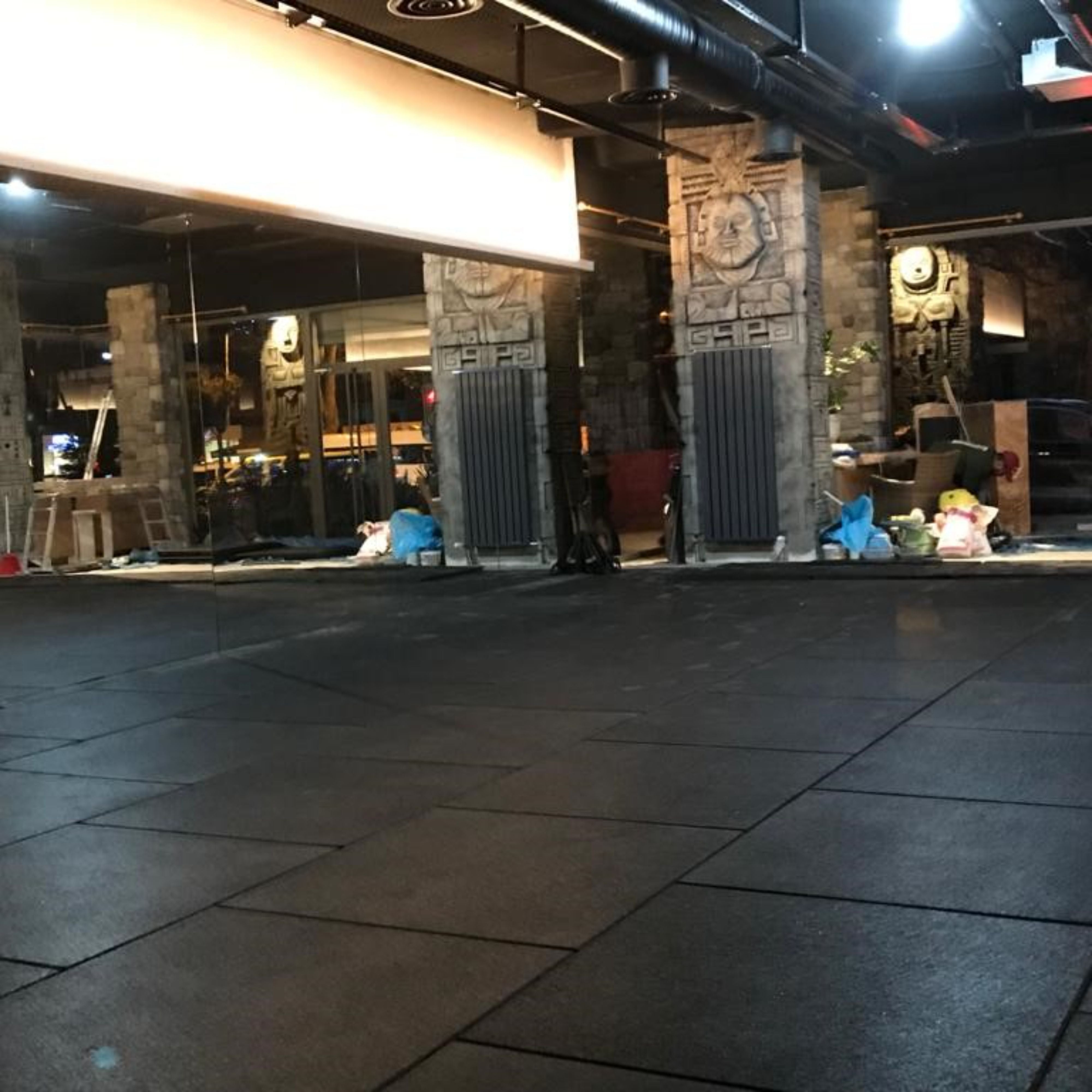

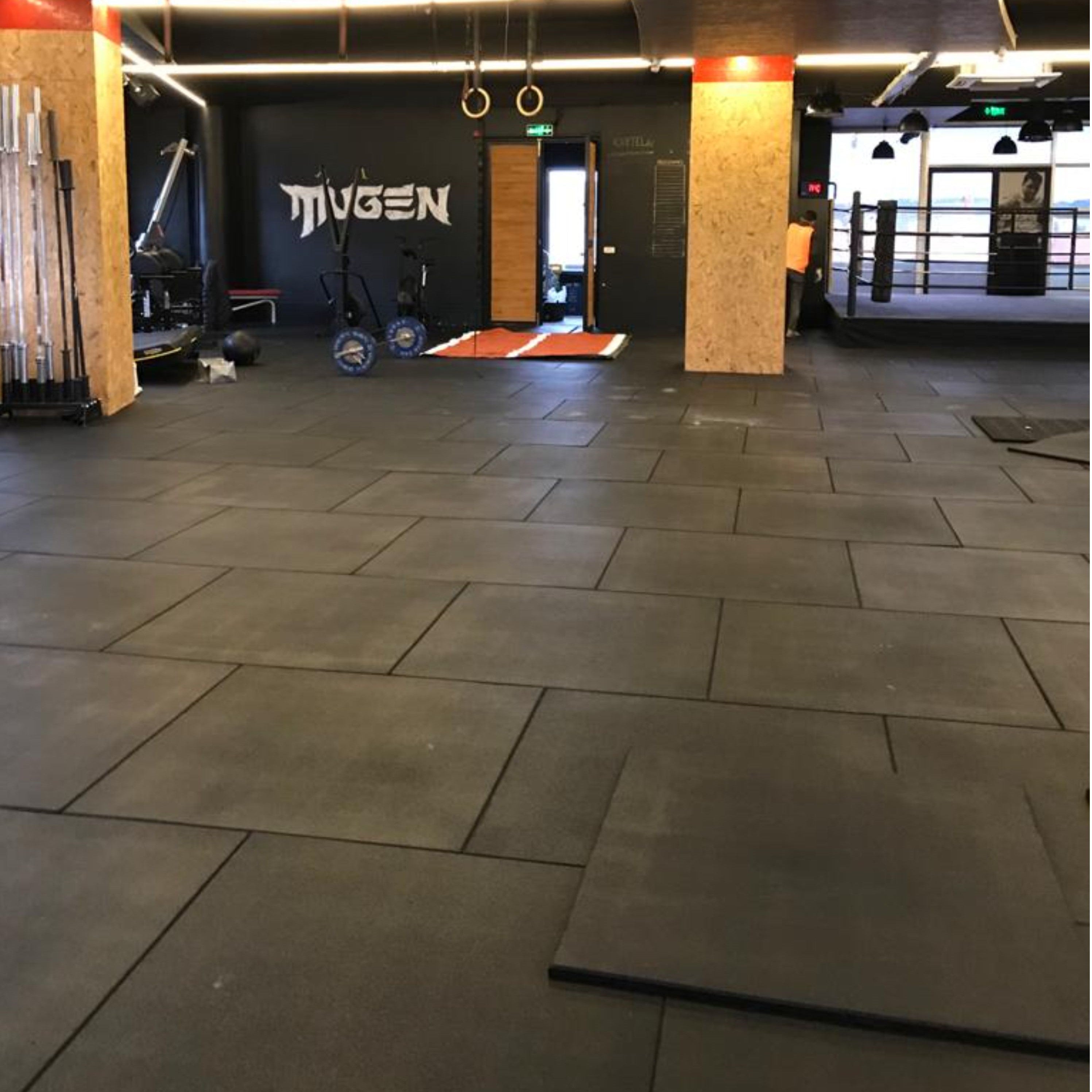

- Lay in a brick pattern to minimise visible joins
- Leave tiles 12–24 hours to acclimatise
- Cut with a utility knife for edge adjustments
- Adhesive only required at high-traffic points
📎 Downloads
📦 Choose the perfect fit for your space:
- 🔹 Buy individual tiles – order exactly what you need
- 🔹 13m² Set – perfect for single garage gyms
- 🔹 18m² Set – extra room for racks and cardio
- 🔹 27m² Set – ideal for double garages
- 🔹 36m² Set – great for extended garage layouts
- 🔹 45m² Set – covers larger custom builds
- 🔹 55m² Set – fits most triple garages or PT studios
Free UK Mainland Delivery
Free delivery is available on orders over £99.99, subject to postcode exclusions. Some areas of Scotland incur a surcharge, which is shown at checkout.
Next Working Day Delivery
Order in-stock items before 1pm Monday to Thursday, or 12pm on Friday, for next working day delivery to eligible UK mainland addresses. This service is not guaranteed and excludes weekends and bank holidays.
If you need delivery to Northern Ireland, offshore islands or an international destination, please contact us before ordering for delivery availability and prices. Email sales@cannonsuk.com or call 01379 687768.
❓ Frequently Asked Questions – 27m² Garage Set
🔧 Do I need adhesive to install the 27 tiles?
No adhesive is required for most garage installs. Each tile weighs approx. 18.5kg, and the cold-pressed fit keeps them stable. You may use tape or edging in high-traffic zones like garage door entries or lifting platforms.
📏 What are the tile dimensions and tolerances?
Each tile is 1m x 1m and 20mm thick. Cold-pressed edges give extremely tight tolerances:
– Length/width: ±0.5%
– Thickness: ±1%
🦶 Are the tiles non-slip?
Yes – they’re R10-rated for slip resistance (DIN 51130) and Class DS (EN 14041). Ideal for garage environments where moisture or chalk may be present.
🧼 How do I clean the floor?
Vacuum or sweep regularly. For deeper cleaning, mop with warm water and a pH-neutral detergent. Avoid bleach or solvent cleaners. Vacuum chalk first before wet cleaning.
📄 Cleaning Guide
🔇 Will this reduce noise in a garage gym?
Yes. Flatline PRO tiles reduce impact sound by approx. 18–23 dB, depending on subfloor type. A great solution for reducing dropped weight noise in shared or residential garages.
🧪 Are the materials safe for indoor use?
Absolutely. These tiles are REACH compliant and VOC tested for safe indoor use. No toxic binders or harsh odours.
🛠️ How do I cut the tiles to fit edges?
Use a sharp Stanley knife and straight edge. Score the tile several times, then apply downward pressure to snap cleanly. Curved edges may need more passes.
📦 How is the 27m² set delivered?
Orders placed before 1 PM qualify for free next-working-day UK mainland delivery (on orders over £99.99). Tiles are stacked flat on a pallet — ensure good access for delivery.
🔒 Certified Flooring Quality – Backed by Industry-Recognised Testing
At Cannons UK, we prioritise transparency, safety, and compliance. Every tile in our Flatline PRO rubber flooring range is backed by trusted, independently verified certifications — ensuring it's safe for indoor use in home gyms, garages, PT studios, and commercial spaces.
From VOC emissions and REACH compliance to fire ratings and ISO-certified manufacturing, we give you clear, traceable proof that your flooring meets the highest UK and EU standards.
Whether you're fitting out a home gym or a public fitness facility, choosing certified flooring ensures insurance compliance, low odour, and safe long-term use — with no nasty chemicals or surprises.
📄 Our Certifications Include:
- ✅ REACH Compliant – free from restricted or harmful substances
🔗 View REACH Certification - ✅ VOC Tested – ultra low emissions, safe for enclosed spaces
🔗 VOC Results - ✅ Impact & Sound Insulation Tested – up to 23dB reduction in impact noise
🔗 Sound Test Certificate - ✅ CE Certified Factory – compliant with EU manufacturing and safety standards
🔗 Learn About CE Marking - ✅ ISO 9001:2015 – quality management system
🔗 View Certificate - ✅ ISO 50001:2024 – energy management and sustainability
🔗 View Certificate - ✅ EN ISO 5470-1:2001 – abrasion resistance for high-wear areas
🔗 View Test Report - ✅ ISO 14001:2015 – environmental management
🔗 View Certificate - ✅ ISO 45001:2018 – health and safety management
🔗 View Certificate
If you need copies of these certifications for building control, architects, insurers, or tenders – just 📩 contact us. We're happy to help.
📊 Technical Specifications – Flatline PRO Rubber Gym Tiles
🔇 Sound Reduction:
Improves impact noise by approx. 18–23 dB, depending on subfloor and installation
🦶 Anti-Slip Ratings:
- R10 Slip Resistance (DIN 51130)
- Class DS (EN 14041 – safer indoor flooring rating)
⚡ Electrical Properties:
- Antistatic: –0.7 kV
🧪 Material Composition:
- Recycled SBR rubber, bonded with low-VOC polyurethane
- REACH compliant and VOC tested
📏 Physical Specs:
- Tile size: 1000mm x 1000mm
- Thickness: 20mm
- Weight per tile: ~18.5kg
- Bulk density: 950–980 kg/m³
- Tensile strength: 1.38 N/mm²
- Force reduction: 10–18%
- Max drop weight: 150kg
- Length tolerance: ±0.5%
- Thickness tolerance: ±1%
🔥 Thermal & Fire Resistance:
- Working temp: –30°C to +80°C
- Short-term tested: Up to +300°C
- Thermal conductivity: 0.17 W/(m·K)
- Expansion coefficient: 23.1×10⁻⁵/°C
- Fire rating: Class B2 (EN 13501)
💧 Environmental Properties:
- Vapour permeable
- Resistant to water, diluted acids/alkalis
- UV-resistant, chemically neutral (EN 423)
